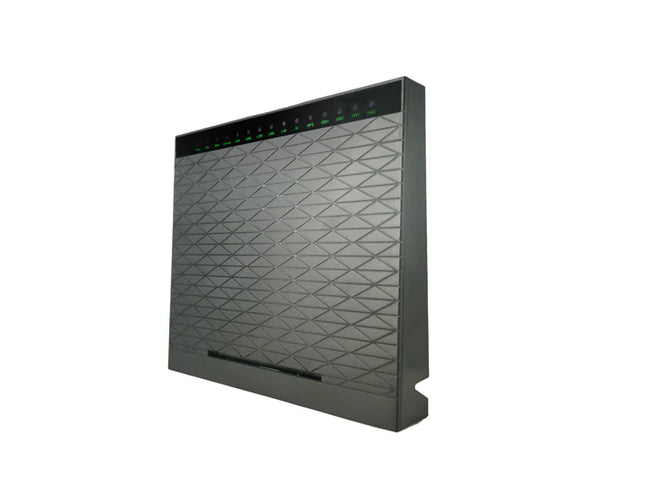

The NF18MESH is a CloudMesh Gateway that will work wirelessly with the NS-01 CloudMesh Satellite, forming a single powerful Whole Home WiFi Mesh network with all the control and settings centralized on the Gateway. The Gateway becomes the WiFi Mesh master node with the WiFi client device roaming seamlessly between satellites and the gateway.
Highlights:
MESH ENABLED: The NF18MESH is a CloudMesh Gateway that works wirelessly with the NS-01 CloudMesh Satellite, forming a single powerful Whole Home WiFi Mesh network with all the control and settings centralized on the gateway. The gateway becomes the WiFi Mesh master node and the WiFi client device roams seamlessly between satellites and the gateway.
WIFI AUTOPILOT: Every NF18MESH Gateway includes the CloudMesh WiFi AutoPilot. WiFi Auto-Pilot constantly scans and analyses the end-user WiFi environment. If any detrimental changes are detected, the AutoPilot adjusts the gateway’s WiFi parameters. Any action taken is based on a patented and weighted algorithm ensuring that the internet connection experience is not compromised. It ensures that every WiFi client device is connected on the best possible channel, using the fastest available band, at the perfect RF power level and at the closest WiFi access point.
EASY PAIRING WITH CLOUDMESH SATELLITES: The CloudMesh system is a turnkey, out-of-the-box solution. ISP Satellite pre-provisioning is available via a cloud portal and API, allowing for a Zero Touch configuration experience for the end-user. There is also an easy and fast alternative for in home setup using WPS buttons.
MADE FOR NBN AND UFB: Featuring a Gigabit WAN port as well as VDSL2/ADSL2 technologies, the NF18MESH will connect with FTTN, FTTB, FTTC and FTTH. The Gateway also features VoIP for HD quality voice calls with the capacity to connect two (2) phones.
CLOUD ORCHESTRATION: To operate effectively, multiple WiFi access points within the same environment need a centralized point of coordinationand control. This is done by the WiFi Analytics Cloud. In addition to that, the Cloud is performing all the CPU intensive processing and is using sophisticated machine learning techniques to detect and recognize historical WiFi environment patterns to avoid future WiFi interference.
WORKS WITH WIFI ANALYTICS PLATFORM: The CloudMesh WiFi Analytics Platform is a turnkey, CPE integrated, cost-effective solution that provides the ultimate visibility into the health of the subscriber’s WiFi home network. It can dramatically lower operational costs and create superior enduser experiences. It does this by enabling proactive diagnostic, management and control of subscriber’s home WiFi environment, helping to resolve even the most elusive WiFi problems.
PARENTAL CONTROL:
Control access for each family member by restricting Internet access based on time of day.
Specifications:
ENVIRONMENTAL AND PHYSICAL
Operating temperature: 0-40°C
Humidity: 10%-95% non-condensing
Storage temperature: -10-60°C
Humidity: 5%-95% non-condensing
DC Input Voltage: 12V/2A
Dimensions: 230 (w) x 200 (h) x 75 (d) mm ›Weight: 558g
DEVICE INTERFACE
1 x RJ45 10/100/1000Mbps WAN port
1 x ADSL / VDSL port ›4 x RJ45 10/100/1000Mbps LAN ports
2 x RJ11 Phone ports (VoIP)
1 x Reset button
2 x WPS buttons (2.4GHz and 5GHz)
1 x Power jack
2 x USB 2.0 Ports (storage)
1 x Power switch
LED (Power/DSL/Internet/WAN/LAN1-4/ 2.4GHz/5GHz/WPS/USB1-2/ Phone1-2)
VDSL:
PPPoE/PPPoA/IPoA/ Static IP/ Dynamic IP/Bridge
ITU-T G.993.2 VDSL2 ›Supports 8a,8b,12a,12b,17a profile
Supports ATM and PTM
Supports G.INP
ADSL2+:
PPPoE/PPPoA/IPoA/Static IP/ Dynamic IP/Bridge
ITU G.992.1 (G.dmt) › ITU G.992.2 (G.lite)
ITU G.992.3 › ITU G.992.3 (Annex J)
ITU G.992.3 (Annex L)
ITU G.992.5
ITU G.992.5 (Annex M)
Supports multiple PVCs
ETHERNET WAN:
PPPoE, DHCP client, Static IP
WIRELESS:
Compatible with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n and IEEE 802.11ac
Supports concurrent dual band (2.4GHz/5GHz) wireless › SSID broadcast or in stealth mode
Auto/Manual Channel selection
WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
WPS button (WiFi Protected Setup)
VoIP PROTOCOL:
SIP2.0
G.711, G.723 and G.726
FAX T.38 FAX Relay
MEDIA:
File sharing (SAMBA v1 only)
DLNA
SECURITY:
Firewall
MAC filtering
ROUTING:
Static Route
Dynamic Route (RIP v1/v2)
DMZ
Supports Layer 2 Bridge Mode
ADMINISTRATION:
QoS
SNMP
UPnP
Syslog
Web-based UI
Remote Login
TR-069 Auto provisioning
Backup/Restore Settings
COMPLIANCE:
RCM, NZ Telepermit
Improve your home network with our AC Dual Band VDSL2+ Modem Router. Enjoy fast and reliable connections with multiple WAN options and firewall security. Setup is a breeze and future-proof connectivity ensures longevity. Plus, free network management and dynamic support keeps your network running smoothly.
Highlights:
Equipped with dual failover redundancy to ensure high reliability and stability of the network.
Free ACS/TR069 network management feature enables remote management and monitoring of the router's status through communication with the Auto Configuration Server (ACS).
Features two RJ-11 FXS ports for connecting VoIP phones or fax machines.
Supports multiple WAN types including ATM, PTN, ETH and dongles.
Built-in DoS (Denial of Service Attack) and SPI (Stateful Packet Inspection) firewalls effectively protect your network from malicious attacks and unauthorized access.
Specifications:
DSL Standards
VDSL2,ADSL2/2+,ADSL
Wirelrss Standards
IEEE802.11a/n/ac，5GhzIEEE802.11b/g/n，2.4Ghz
Signal rate
5Ghz:Up to 867Mbps2.4GHz:Up to 300Mbps
Operation Frequency
2.4Ghz and 5Ghz
Receive Sensitivity
5Ghz11a 6Mbps：-96dbm，11a 54Mbps： -79dbm11ac HT20：-71dbm，11ac HT40：-66dbm，11ac HT80：-63dbm，11n HT20：-72dbm，11n HT40：-71dbm2.4GHz11g 54M：-77dbm11n HT20：-74dbm，11n HT40 ：-72dbm
Wirelrss Securit
WEP,WPA/WPA2，WPA-PSK/WPA2-PSK encryption
VOIP Standards
SIP(RFC3261),ITU-T G.729/G.722/G.711a/G.711
Interfaces
1×DSL Port1×10/100/100Mbps WAN Port4×10/100/100Mbps LAN Ports2×FXS ports1×USB3.0 ports
Buttons
Powers ON/OFF Button，WPS Button，WIFI Button，Reset Button
Power Supply
DC 12V 1.5A
Antenna
2×5dbi dual band fixed antennas
Dimensions(W×D×H)
210×150×32mm
WAN Type
ATM/PTN/ETH/Dongle
DHCP
Server，Client，DHCP Client List，Address Reservation
Quakity of Service
WMM,Bandwidth Control
Port Forwarding
Virtual Server，Port Triggering，UPnP,DMZ
VPN Pass-Through
PPTH,L2TP,IPSec
Access Control
Parental Control， Local Management Control， Host List，AccessSchedule，Rule Management
Firewall Security
DoS，SPI FirewallIP Address Filter/MAC Address Filter/Domain FilterIP and MAC Address Binding
USB Sharing
Support Samba(storage)/FTP Server/Media Server/PrinterSeerver/DLNA
VOIP Features
Two RJ-11 FXS ports for connecting to analong telephonesCall forwarding，Call waiting，Call block，3-way conference call，etc
Management
Access ControlLocal ManagementRemote Management
Internet Protocol
IPv4，IPv6
Operating Temperature
0℃～40℃(32℉～104℉)
Storage Temperature
-40℃～70℃(-40℉～158℉)
Operating Humidity
10%～90%，non-condensing
Storage Humidity
5%～90%，non-condensing
Certifications
CE,RoHs
Supports multiple WAN connections and dual-link redundant backup, providing enterprise-level firewall and VPN security protection, and easily builds a high-speed and stable home or small and medium-sized enterprise network. Integrated with dual-mode VDSL2/ADSL2+ access, it is compatible with mainstream broadband standards worldwide (such as G.993.2/30a/G.INP, etc.). Dual-band Wi-Fi (2.4G+5G) supports 802.11ac/a/n protocols, and 2x2 MIMO achieves gigabit wireless coverage. Equipped with 4 Gigabit LAN ports, 2 USB ports, and dual FXS voice ports, it supports SIP/VoIP calls and T.38 fax, and has a built-in TR069 remote management system. With a simple design and built-in antennas, it is plug-and-play and easy to deploy. It has passed CE/FCC certifications and has strong future expandability.
Highlights:
Multiple WAN connections & firewall security.
User-friendly setup & fast and reliable home networking.
Dual-failover redundancy & future-proof connections.
Free ACS/TR069 network management.
Specifications:
Interface
1*10/100/1000Mbps RJ-45 WAN port1*RJ-11 VDSL2/ADSL2+ port4*10/100/1000Mbps RJ-45 LAN ports2*RJ-11 FXS ports2*USB ports
Buttons
Power ON/OFFWPSResetWLAN
LEDs
Power, Broadband, Internet, WLAN, WPS, Phone, USB
Antenna
nternal antennas
VDSL Standards
ITU-T G.993.2 VDSL28a,8b,12a,12b,17a,30a profileG.vectorATM and PTMG.INP
ADSL Standards
G.992.1 (G.dmt), G.992.2 (G.lite),G.992.3 (ADSL2),G.994.1(G.hs),G.992.5 (ADSL2+) ,G.997.1ADSL physical connection ATM AAL5AAL5 (RFC2684/1483)
Wi-Fi
Frequency: 2.4 GHz, 5GHzIEEE 802.11a/n/ac Wi-Fi @ 5GHz(2x2)IEEE 802.11b/g/n Wi-Fi @ 2.4GHz(2x2)WEP/WPA/WPA2 Security
VOIP
HTTP Authentication: Basic and Digest Access Authentication.RTP Payload for DTMF Digits, Telephony Tones and Telephony SignalsSIPT.38：Procedures for real-time Group 3 facsimile communication over IP networks
Networking
IPv4/IPv6 Dual StackNATPort forwardingUPnP IGD with NAT traversal capabilityStatic routingDynamic DNS relayDHCP client/serverIGMP and MLD snooping/proxy
QoS
Flexible packet classificationUp to eight queuesWi-Fi Multimedia (WMM)
Security
Stateful Packet Inspection (SPI)Denial of Service (DoS) preventionMultiple VPN (IPSec, PPTP,L2TP) passthroughIP filtering
Management
Device Configuration, Management and UpdateWeb based GUILocalization supportEmbedded web serverDownload image via HTTP, TFTP server, FTP serverCommand Line Interface via serial port, telnet, or sshMenu-driven CLI via serial port or telnetUniversal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0)WAN Management Protocol (TR-069)SNMP v1/v2Date/time update from SNTP Internet Time Server
Physical Characteristics
Net weight: 436gDimensions(LxWxH): 221x180x33 mm
Power
Input: 100 ~ 240 VOutput: 12 V / 1.5 A
EnvironmentalCharacteristics
Operating temperature: 0 ° C~ 40° C (32° F ~ 104° F )Humidity: 5% ~ 95% (non-condensing)
Certification
CEFCC
