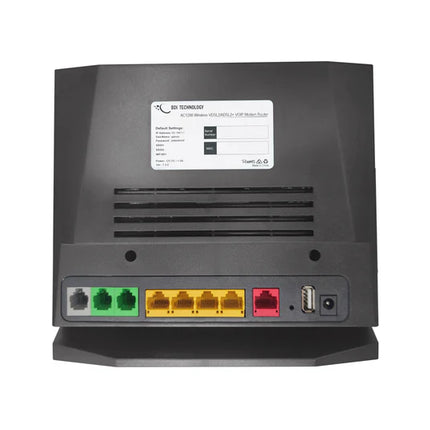

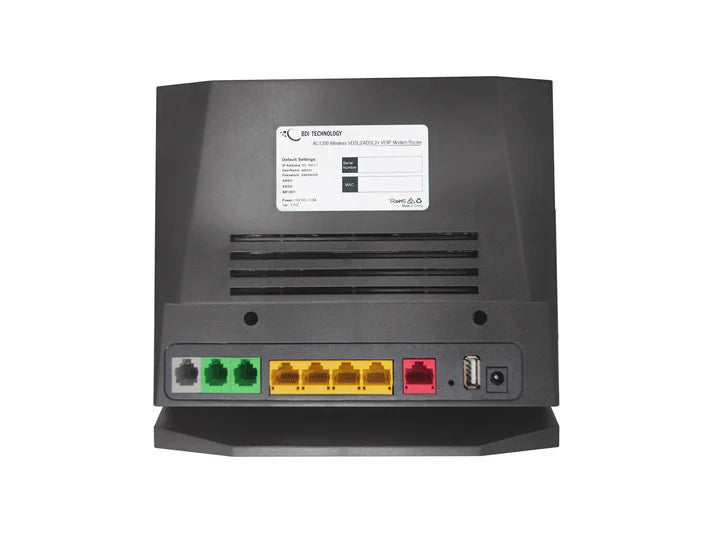

| Interface |
1*10/100/1000Mbps RJ-45 WAN port
1*RJ-11 VDSL2/ADSL2+ port
4*10/100/1000Mbps RJ-45 LAN ports
2*RJ-11 FXS ports
2*USB ports |
| Buttons |
Power ON/OFF
WPS
Reset
WLAN |

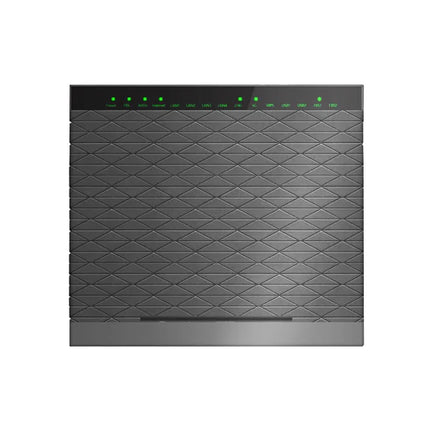

| LEDs |
Power, Broadband, Internet, WLAN, WPS, Phone, USB |
| Antenna |
nternal antennas |
| VDSL Standards |
ITU-T G.993.2 VDSL2
8a,8b,12a,12b,17a,30a profile
G.vector
ATM and PTM
G.INP |
| ADSL Standards |
G.992.1 (G.dmt), G.992.2 (G.lite),
G.992.3 (ADSL2),G.994.1(G.hs),
G.992.5 (ADSL2+) ,G.997.1
ADSL physical connection ATM AAL5
AAL5 (RFC2684/1483) |
| Wi-Fi |
Frequency: 2.4 GHz, 5GHz
IEEE 802.11a/n/ac Wi-Fi @ 5GHz(2x2)
IEEE 802.11b/g/n Wi-Fi @ 2.4GHz(2x2)
WEP/WPA/WPA2 Security |
| VOIP |
HTTP Authentication: Basic and Digest Access Authentication.
RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
SIP
T.38：Procedures for real-time Group 3 facsimile communication over IP networks |
| Networking |
IPv4/IPv6 Dual Stack
NAT
Port forwarding
UPnP IGD with NAT traversal capability
Static routing
Dynamic DNS relay
DHCP client/server
IGMP and MLD snooping/proxy |
| QoS |
Flexible packet classification
Up to eight queues
Wi-Fi Multimedia (WMM) |
| Security |
Stateful Packet Inspection (SPI)
Denial of Service (DoS) prevention
Multiple VPN (IPSec, PPTP,L2TP) passthrough
IP filtering |
| Management |
Device Configuration, Management and Update
Web based GUI
Localization support
Embedded web server
Download image via HTTP, TFTP server, FTP server
Command Line Interface via serial port, telnet, or ssh
Menu-driven CLI via serial port or telnet
Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0)
WAN Management Protocol (TR-069)
SNMP v1/v2
Date/time update from SNTP Internet Time Server |
| Physical Characteristics |
Net weight: 436g
Dimensions(LxWxH): 221x180x33 mm |
| Power |
Input: 100 ~ 240 V
Output: 12 V / 1.5 A |
Environmental
Characteristics |
Operating temperature: 0 ° C~ 40° C (32° F ~ 104° F )
Humidity: 5% ~ 95% (non-condensing) |
| Certification |
CE
FCC |
