Description

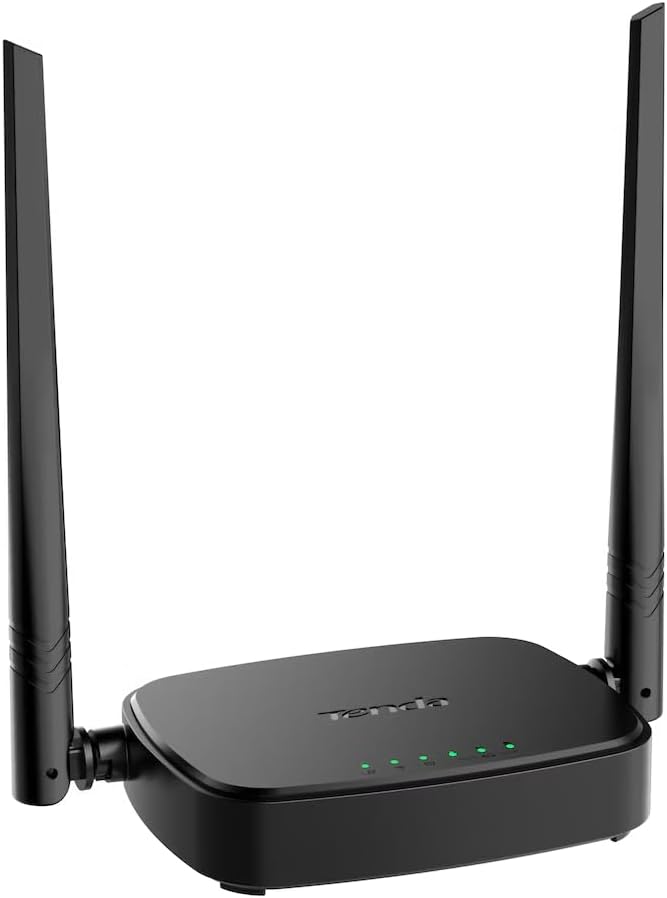

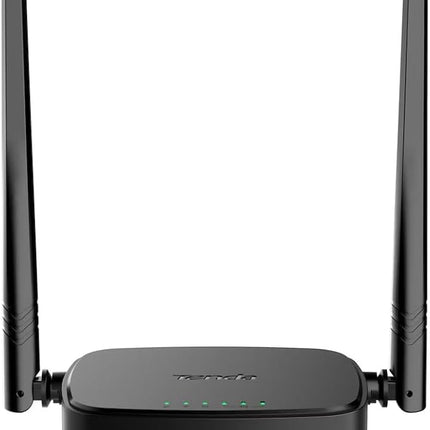

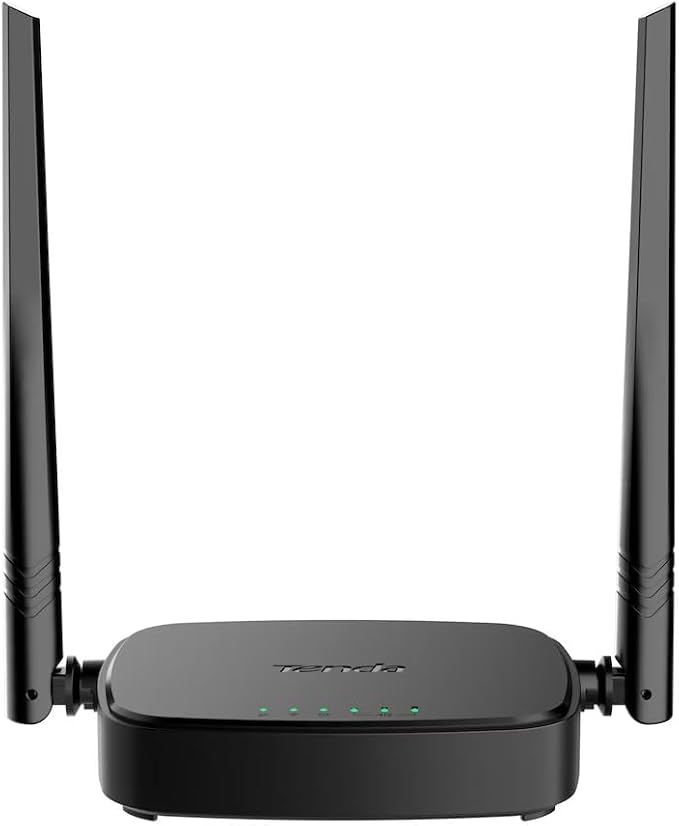

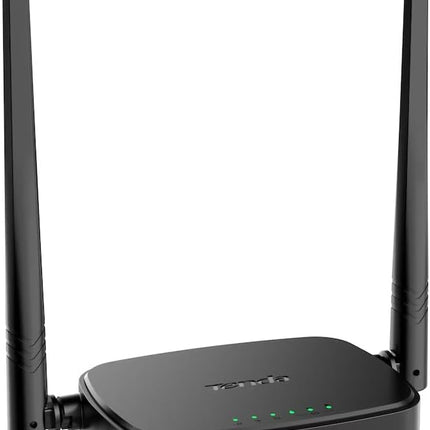

Tenda 4G05 is an LTE router that combines LTE and high-speed Ethernet access, delivering Wi-Fi speeds of up to 300Mbps. Compatible with over 100 operators from around the world, it offers a hassle-free plug-and-play experience with no configuration required. Whether for villas, conference room, surveillance, temporary store, or power outage, it ensures a high-speed and stable network experience.
Highlights:
- Compatible with SIM cards from various operators
- No need to configure. Plug and play
- Wi-Fi rate of 300Mbps allows up to 32 operators to access simultaneously
- 24/7 network monitoring for stable Wi-Fi connectivity
- Support mobile power for more comprehensive scenarios
Compatible with SIM cards from various operators: It's compatible with 3900+ carriers' SIM cards in more than 100 countries. It also refreshes APN list at regular period. Meanwhile, it supports AUTO APN function, and it is compatible with virtual operators, which saves your worry of SIM failing to work.

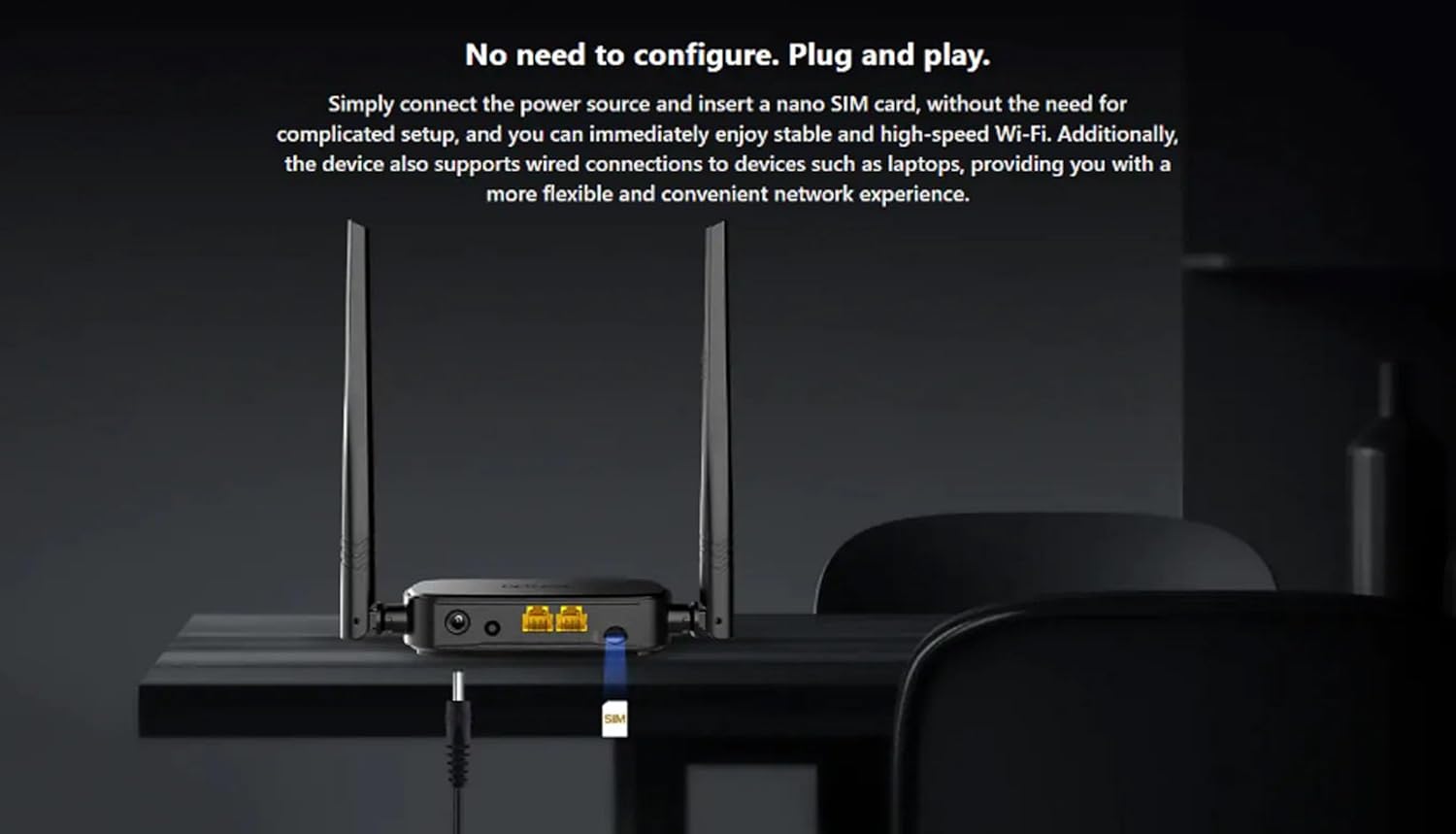

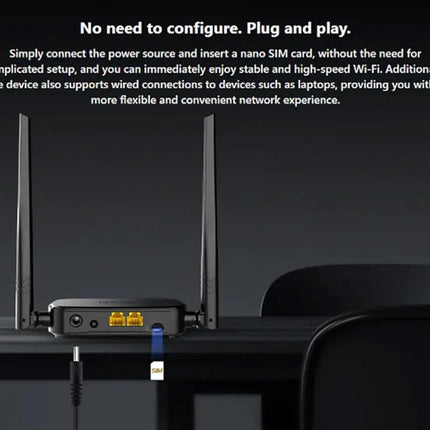

No need to configure. Plug and play: Simply connect the power source and insert a nano SIM card, without the need for complicated setup, and you can immediately enjoy stable and high-speed Wi-Fi. Additionally, the device also supports wired connections to devices such as laptops, providing you with a more flexible and convenient network experience.
Wi-Fi rate of 300Mbps allows up to 32 operators to access simultaneously: Featuring two external high-performance 4G antennas and optimized LTE technology, it offers speeds of up to 150Mbps for 4G networks. With two built-in omni-directional Wi-Fi antennas and wireless MIMO technology, it supports wireless connections at speeds of up to 300Mbps. Stable and fast multi-device connectivity for an exceptional wireless experience.
24/7 network monitoring for stable Wi-Fi connectivity: It provides you with a stable Wi-Fi connection around the clock. It continuously monitors the network status 24/7 and automatically performs quick repairs in case of any abnormalities, ensuring that you always enjoy a stable and reliable network service.
Specifications:
-
4G Category: LTE CAT.4
- 4G/3G standards: FDD-LTE, TDD-LTE, WCDMA
- Working Bands:
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28AB.
- TDD-LTE: B38/B40/B41.
- WCDMA: B1/B5/B8
- Max 4G speed: DL:150Mbps; UL:50Mbps
- Wi-Fi standards: 802.11b/g/n
- Wi-Fi frequency: 2.4GHz
- Wi-Fi speed: 300Mbps
- Wi-Fi transmit Power: up to 20dBm

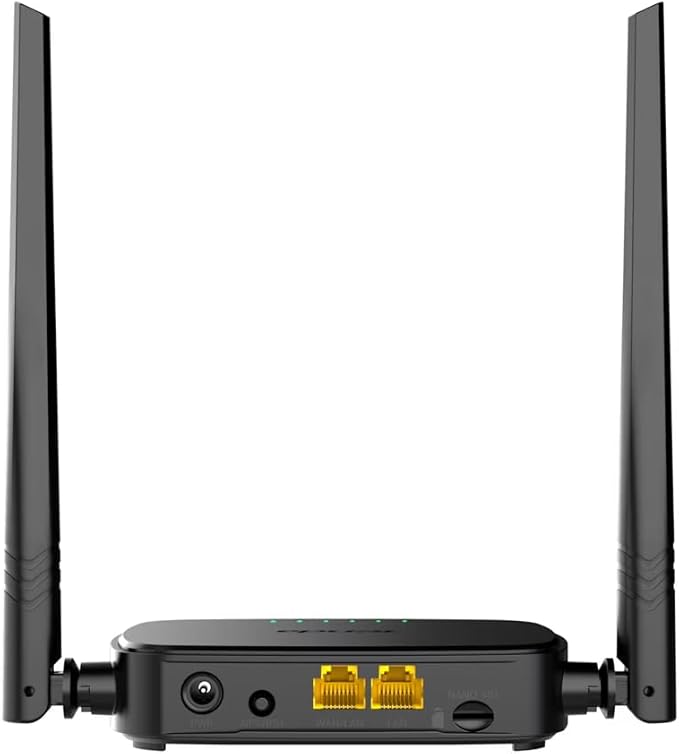

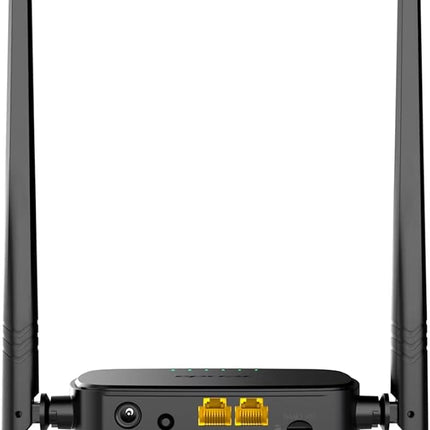

- Interface:
- 1 × 10/100 Mbps LAN/WAN Port.
- 1 × 10/100 Mbps LAN Port.
- 1 × Nano SIM Card Slot
- Button: WPS/Reset
- Antennas:
- 2 External 4G/3G Antennas.
- 2 Internal Wi-Fi Antennas
-
LED indicators:
- Internet.
- Wi-Fi.
- LAN.
- 4G/3G
- Signal strength (3 Bars)
-
Dimensions（L*W*H）: 116*95*26mm
- Power supply:
- Input power: AC 100V-240V 50/60Hz Output
- Power: DC 9V==0.6A/5V==1A
-
WAN Type:
- 4G/3G or Wired.
- Support Failover
-
4G/3G Features:
- Auto-APN
- Auto dial-up
- Roaming
- SMS(Send/Receive/Delete)
- USSD
- Data limited
- PIN Management
-
Wi-Fi functions:
- Change Wi-Fi name & Wi-Fi key.
- Channel & Bandwidth.
- WPS
- Wi-Fi security: WPA-PSK, WPA2-PSK, WPA/WPA2
- Software features:
- APP/Local/remote management
- DHCP (DHCP Server and Client)
- VPN (PPTP Client/L2TP Client/PPTP Server)
- Firewall
- QOS
- Upgrade firmware from local or OTA
- IPV4/IPV6
-
Temperature:
- Operating Temperature: -5℃~45℃
- Storage Temperature: -30ºC~70ºC
- Humidity: Storage Humidity: 5% ~ 90% RH Non-condensing
-

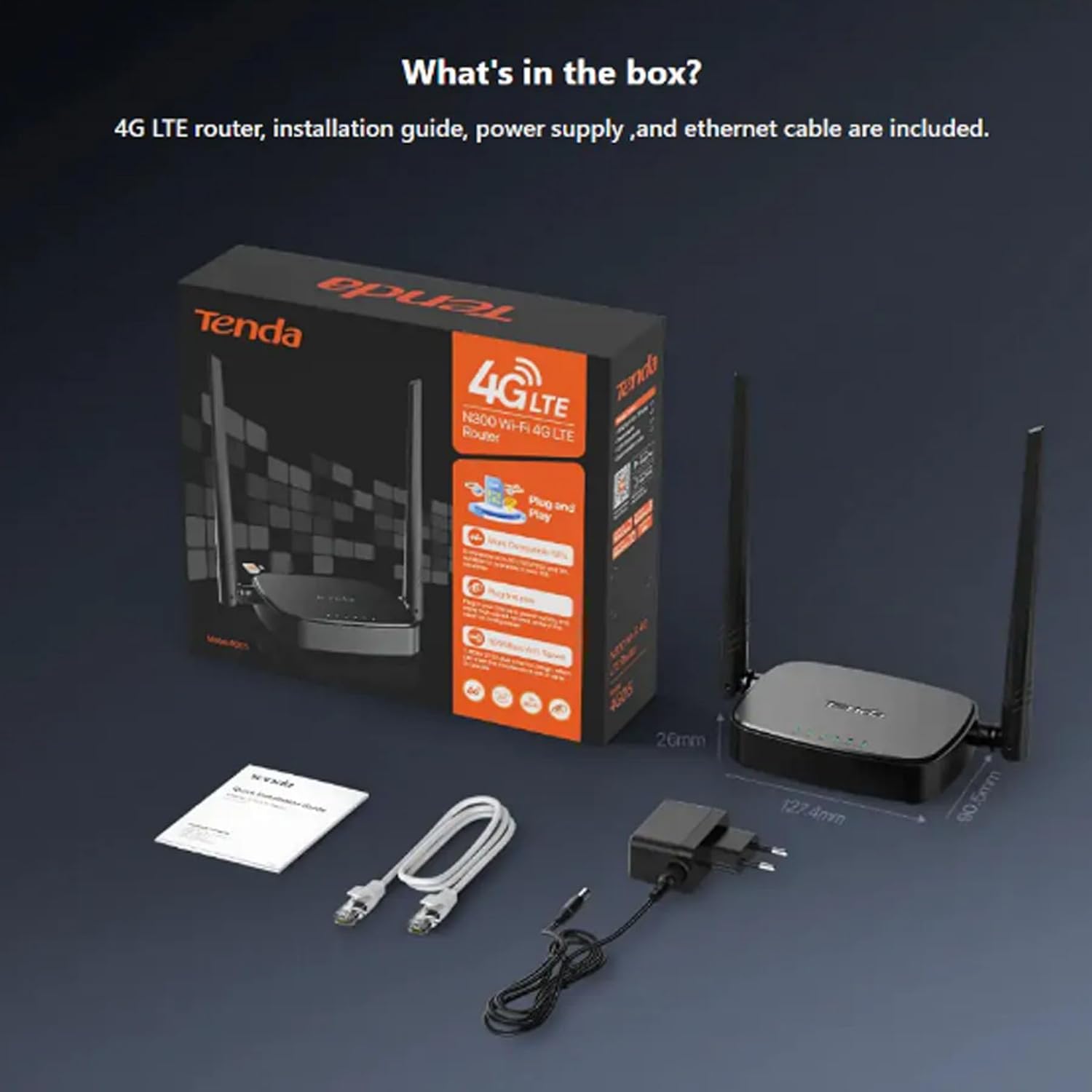

Package Contents:
- 1 * 4G LTE Router
- 1 * Ethernet cable
- 1 * Power adapter
- 1 * Quick Installation Guide
