HARDWARE
|
|
|
Network standards
|
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
|
|
LED Indicator
|
9 * Link/Ack LED indicators
1 * Power LED indicator
|
|

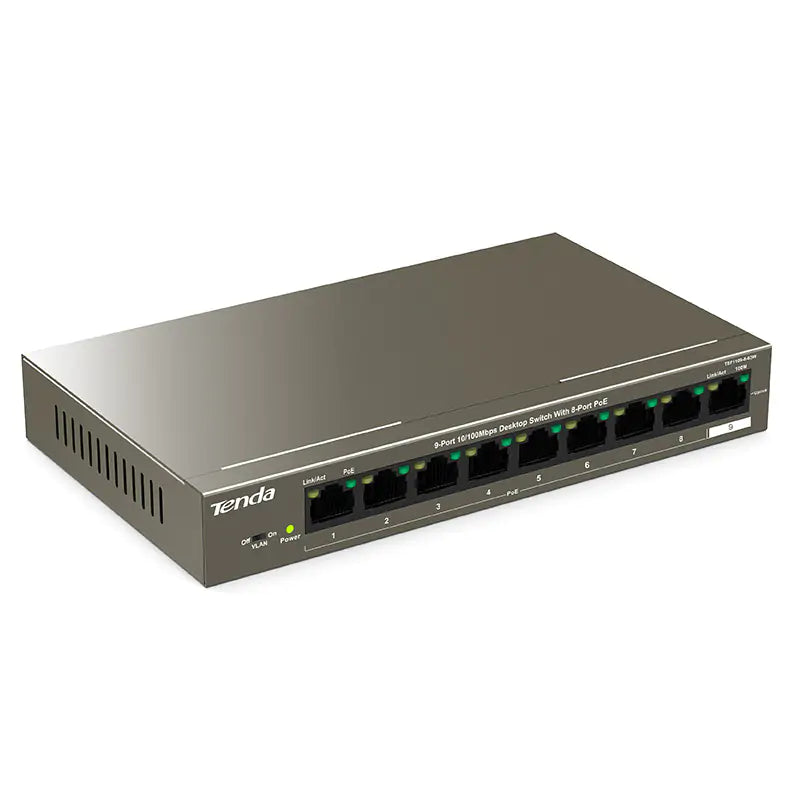

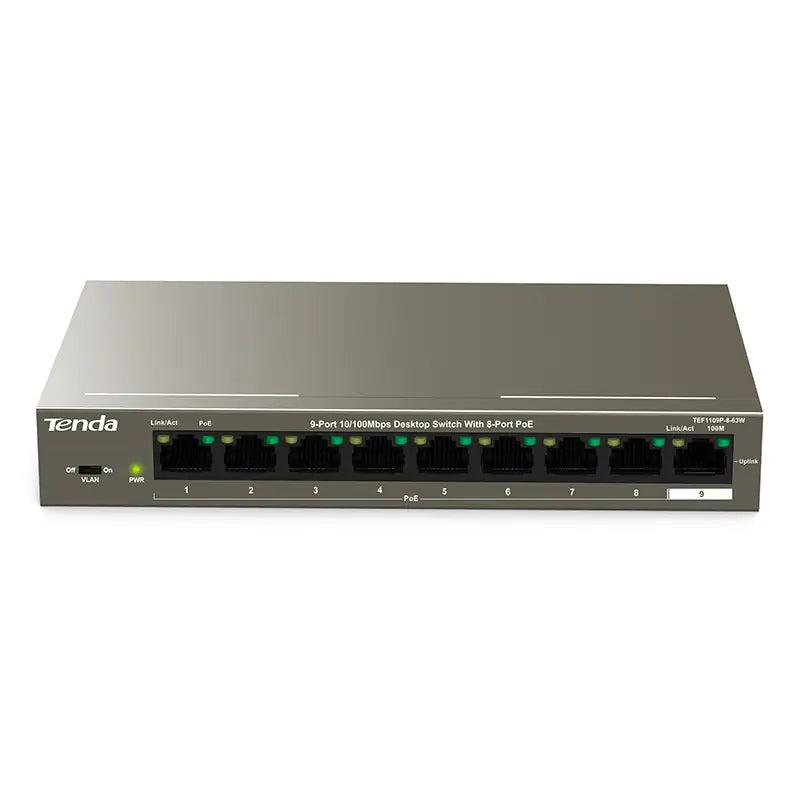

Interfaces
|
8*10/100 Base-TX Ethernet ports (Data/Power)
1*10/100 Base-TX Ethernet ports (Data)
|
|
Transmission media
|
Recommended: CAT5/5e UTP or better
|
|
Dimension
|
177.5mmx104.0mmx26.0mm
|
|
Level of protection
|
Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
|
|
Forwarding mode
|
Store-and-forward
|
|
Switch capacity
|
1.8 Gbit/s
|
|
Packet forwarding rate
|
1.34Mpps
|
|
Buffer
|
1.25Mb
|
|
MAC address table
|
4K
|
|
PoE budget
|
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
|
|

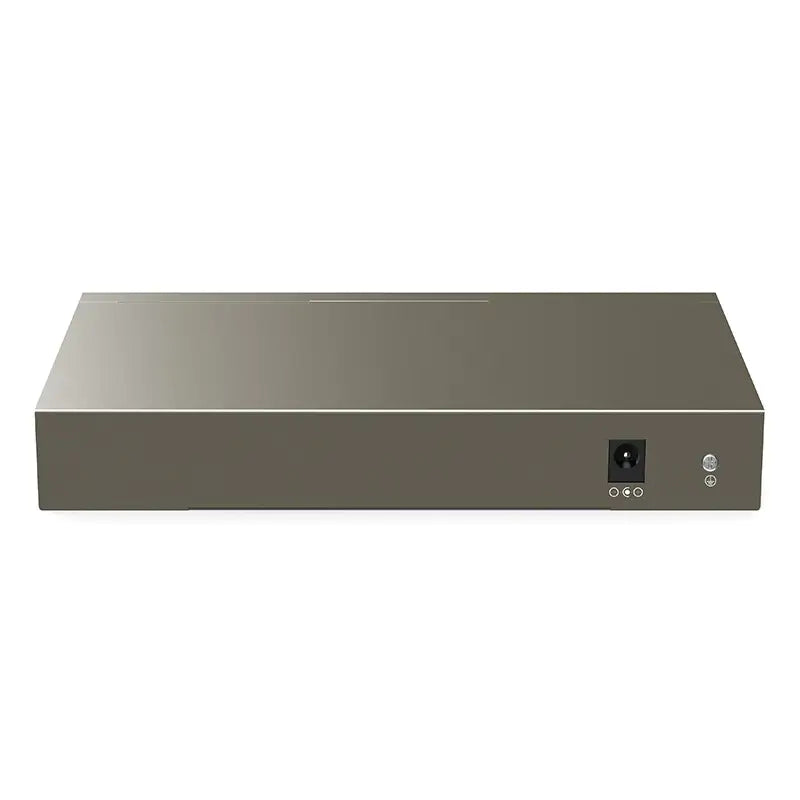

Input voltage
|
100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）
|
|
Mounting
|
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
|
|
Environment
|
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
Certification
|
FCC、CE、RoHS
|
|
SOFTWARE
|
|
|
Functions
|
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
|
