Description

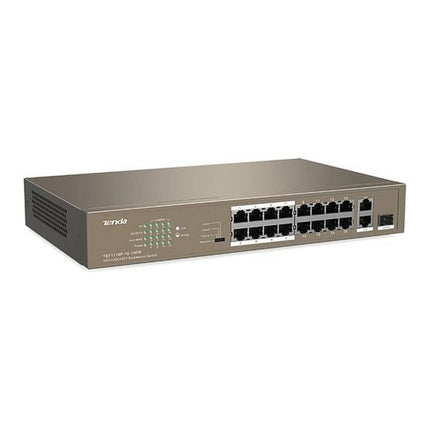

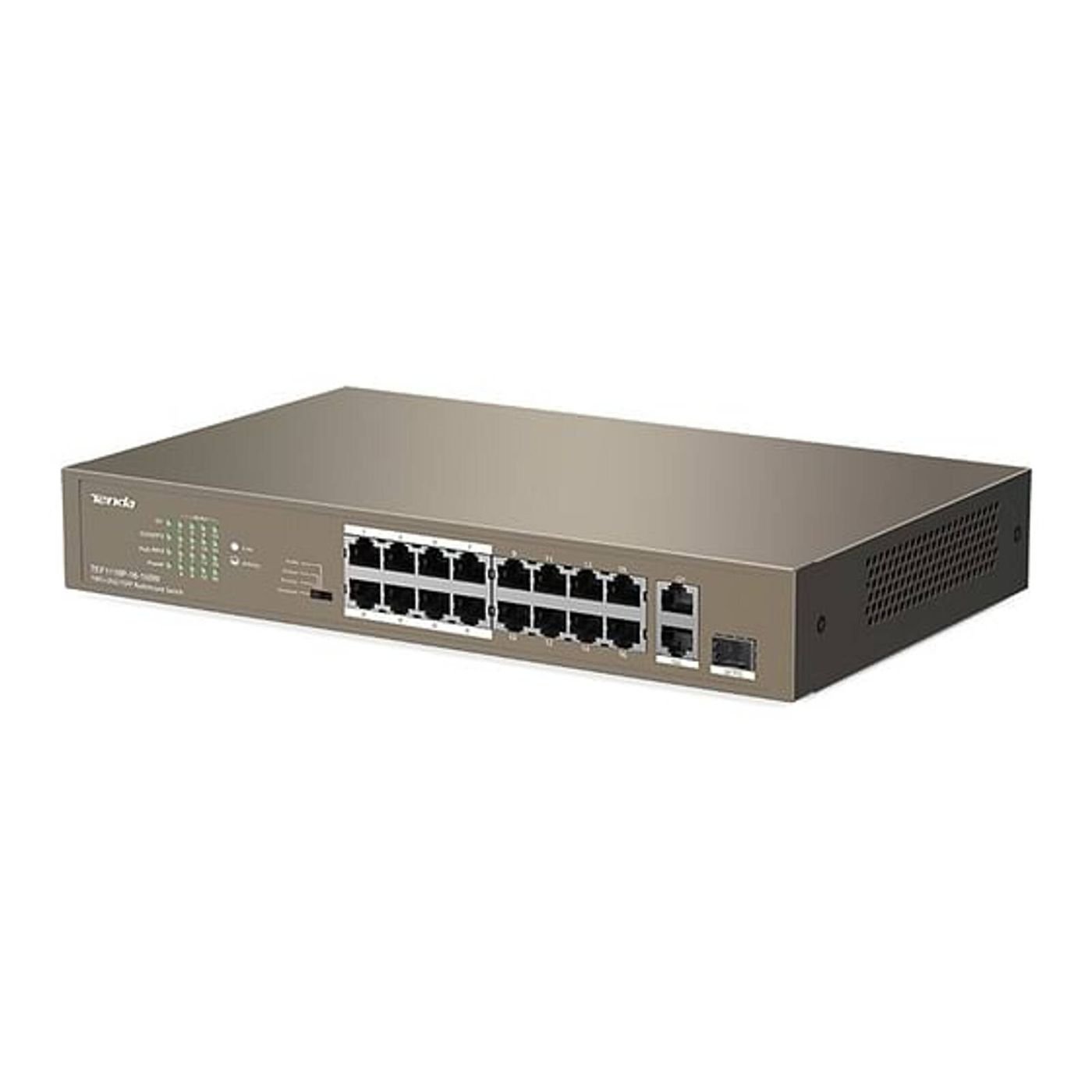

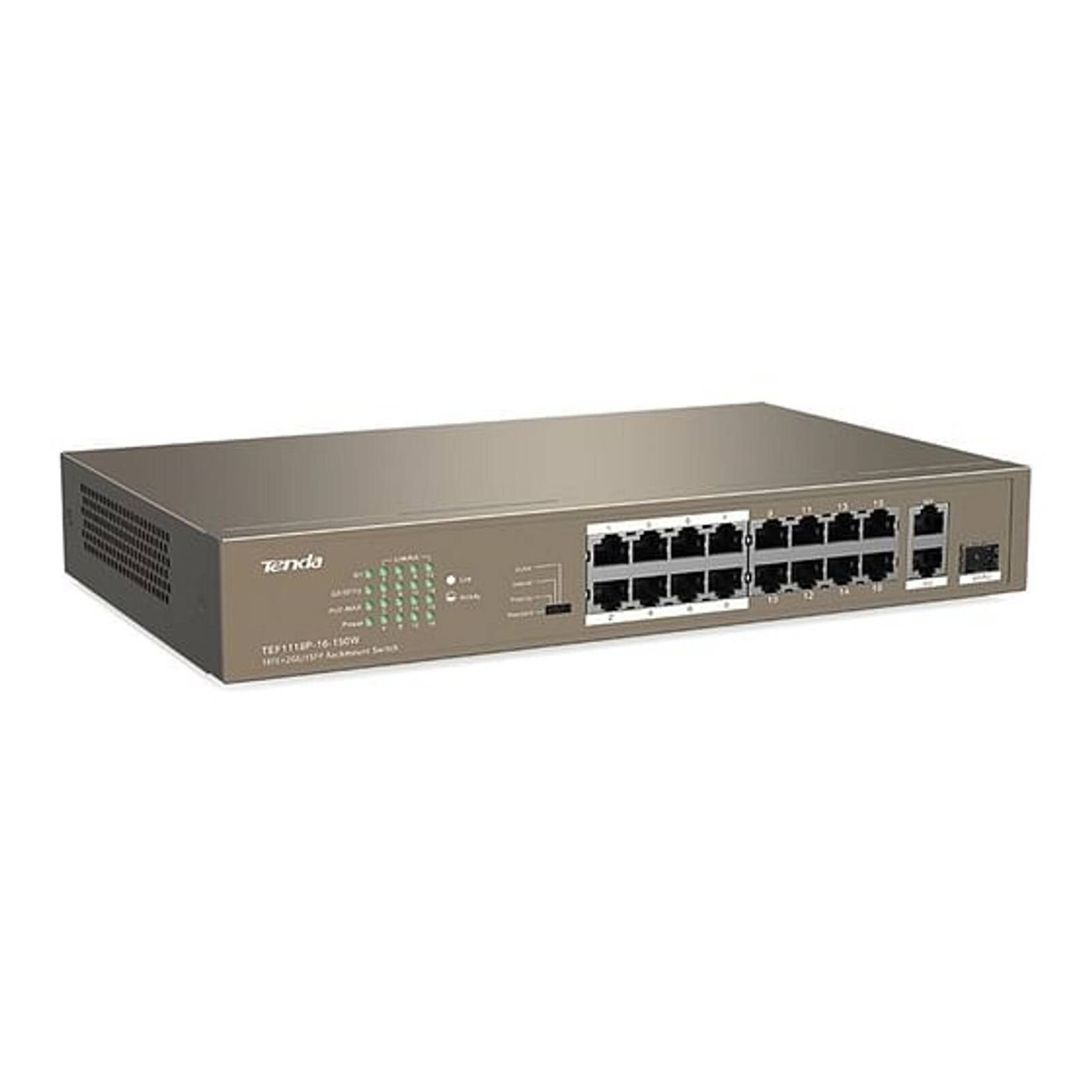

TEF1118P-16-150W is an unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum power output of 150 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, which is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
Highlights:
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.
- 16 * 10/100 Mbps Base-TX RJ45 ports for data transmission and power supply, 2 * 10/100/1000 Mbps Base-T RJ45 ports for data transmission, 1 * 10/100/1000 Mbps Base-X combo SFP slot.
- 4 K MAC address table and MAC address auto-learning.
- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.
- 7.2 Gbps backplane bandwidth.
- Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 150W.
- 2.75 MB cache size for smooth video surveillance.
- 4 modes: standard, priority, extend and VLAN.
- Desktop and rack mounting.
Specifications:
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at

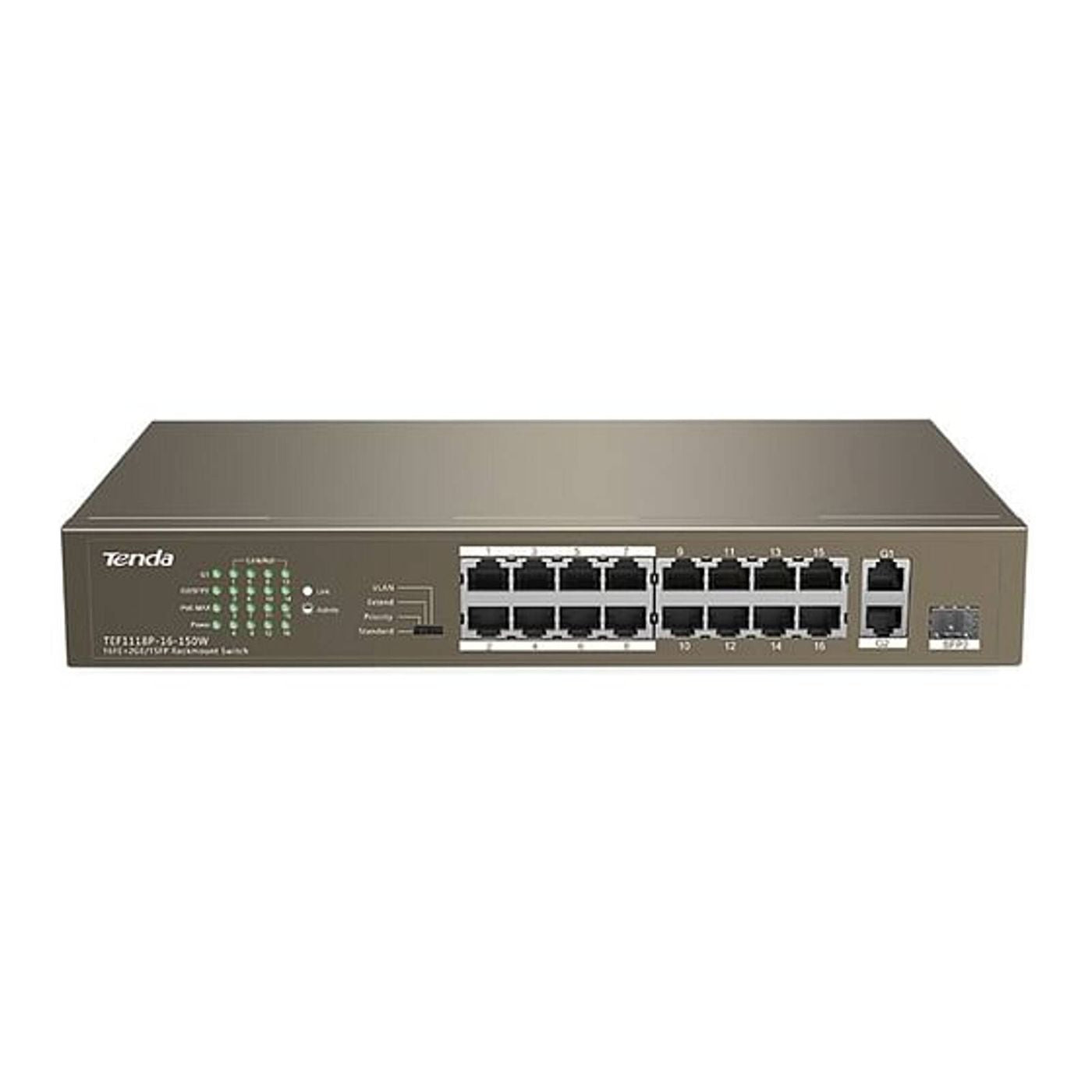

- LEDs indicator:
- 16 * Link/Act LEDs
- 1 * G1 LED
- 1 * G2/SFP2 LED
- 1 * PoE-MAX LED
- 1 * Power LED
-
Interfaces:
- 16 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
- 2 * 10/100/1000 Mbps Base-T RJ45 ports (Data)
- 1 * 10/100/1000 Mbps Base-X SFP port (Combo)
- Forwarding Rates: 5.36 Mpps
- Switching capacity: 7.2 Gbps
- MAC Address Table: 4K
- Lightning protection: ≥6KV

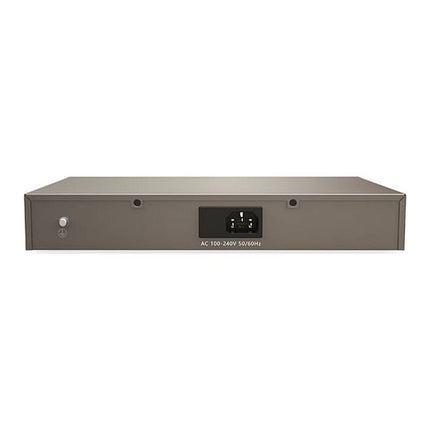

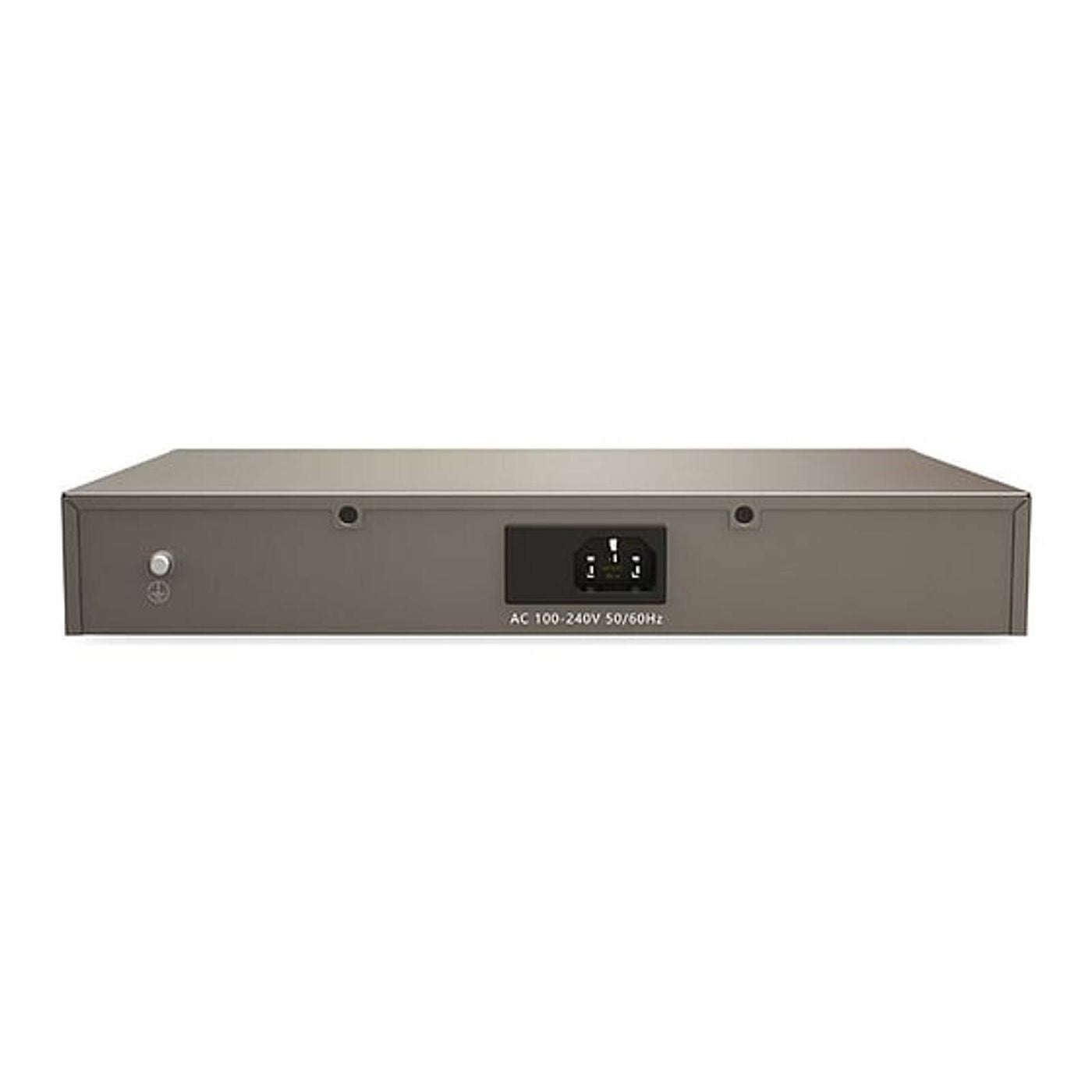

- Input voltage: AC: 100-240V~50/60Hz
- PoE supply:
- Ports 1-16 support standard IEEE802.3af/at
- 30W output per PoE port
- 130W output of the total PoE Power
- Power consumption: 150W output the whole device
- Dimensions: 294*178.8*44mm
- Four Modes:
- Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
- Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately.
- Extend: In this mode, data rate of ports 9 - 16 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
- VLAN: In this mode, ports 1 - 16 of the switch can communicate with port G1, G2/SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast.
-
Environment:
- Operating Temperature: 0℃~45℃ (32℉~113℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
