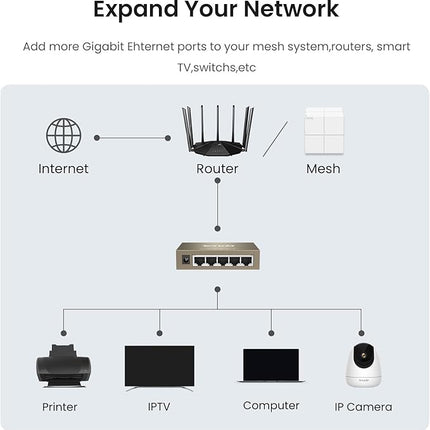

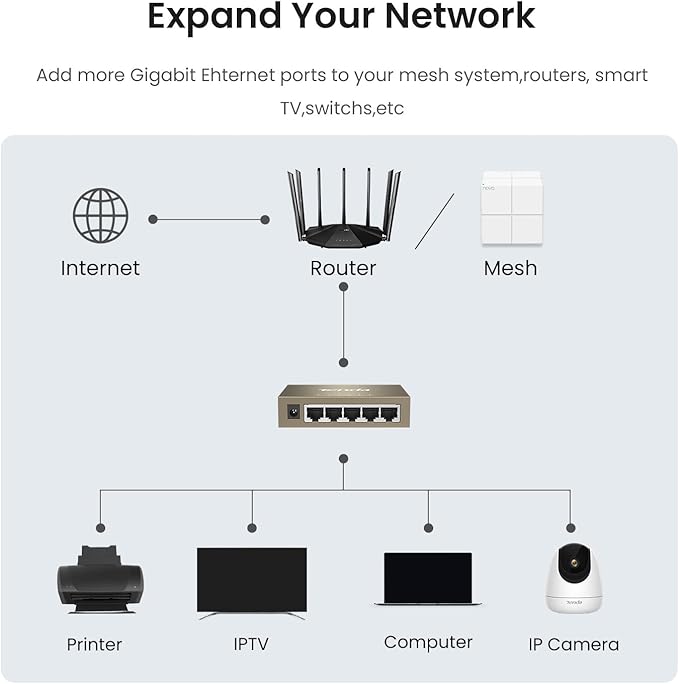

Description Tenda TEG1005D is an unmanned layer 2 gigabit switch designed for security surveillance. It provides five 10/100/1000 Mbps auto-negotiation ports that support line speed forwarding at up to 1000 Mbps. With fine steel housing, it features excellent durability and heat dissipation performance. 6KV Lightning protection is offered to each port to effectively prevent severe lightning damage to the switch. So, it is a right choice for small and medium sized security surveillance projects in SMBs, parks, plants, renting rooms, and so on. Choose TEG1005D for a faster and more stable gigabit surveillance network.
Highlights:
Improve transmission efficiency Extraordinary heat dissipation
Lightning protection for ports

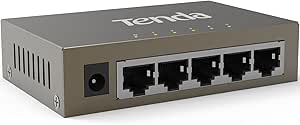

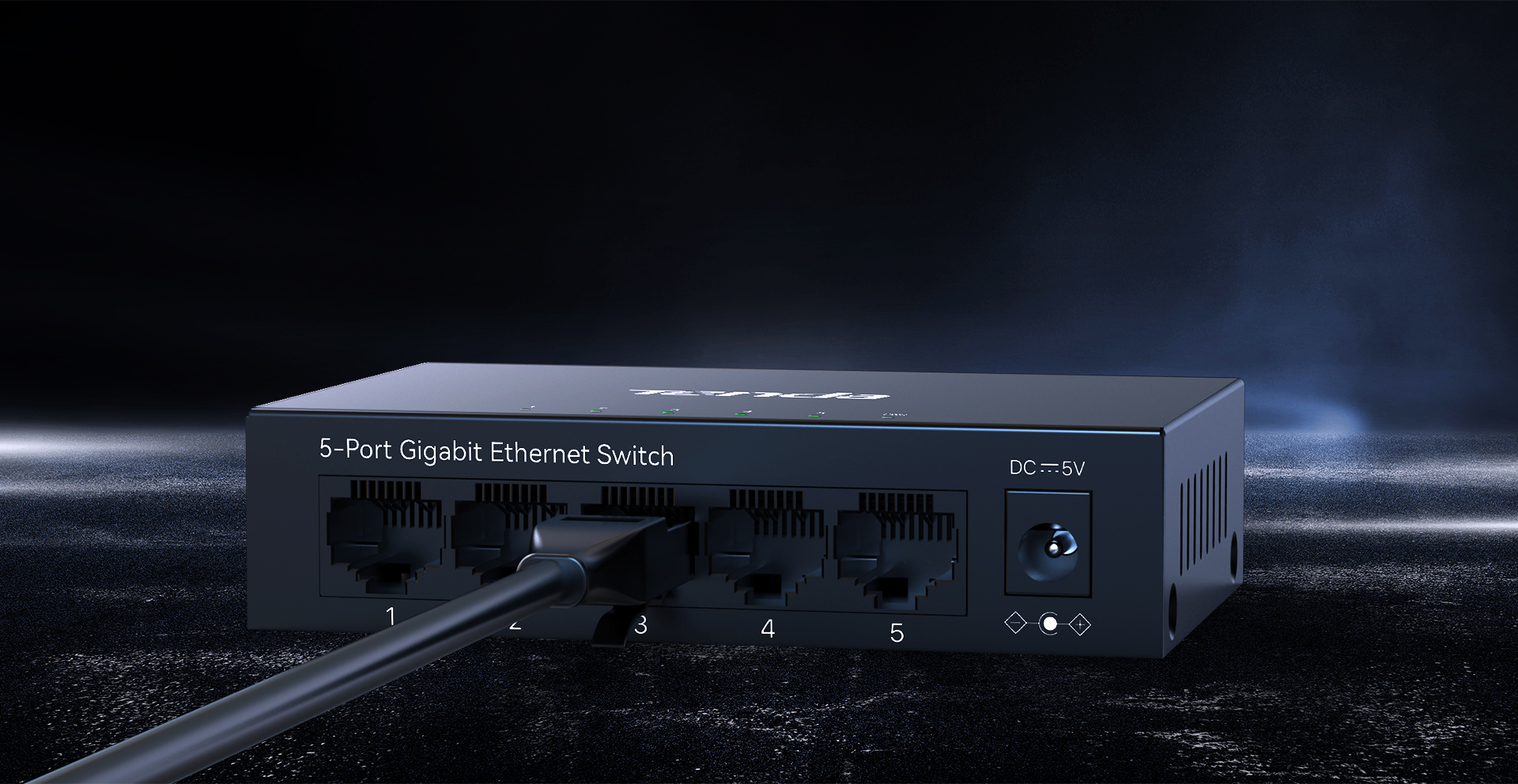

5-Port Gigabit Ethernet Switch - TEG1005D

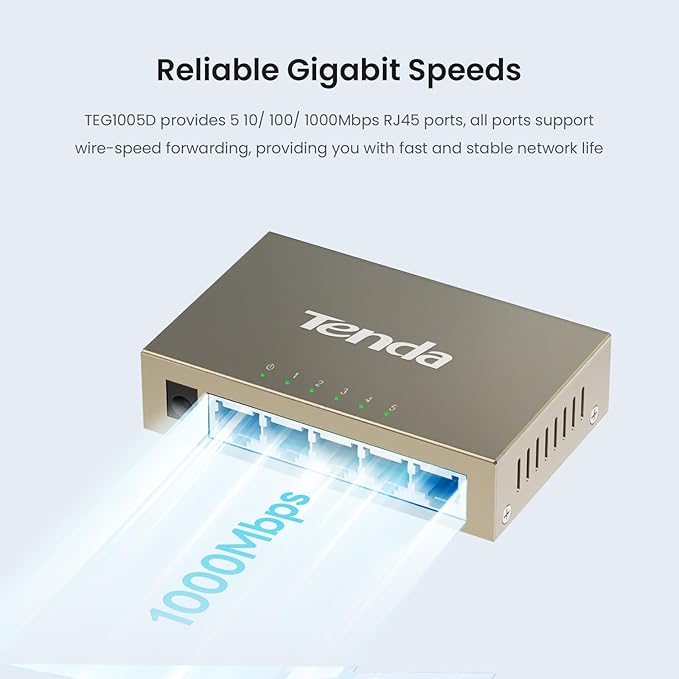

Full Gigabit Port, Full Speed Connection: Equipped with 5*GE, the transmission rate of up to 2000Mbps in full duplex mode. Adopt the highly integrated circuit design of enterprise-level standards, effectively solve the network jam, the loss of monitoring screen, and other problems in the networking environment

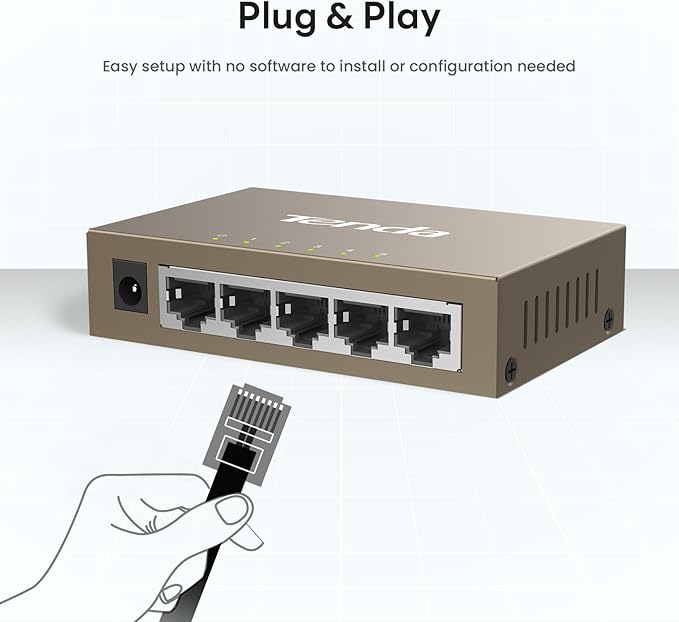

Plug And Play, Convenient Networking: Each port supports MDI/MDIX auto-flip. Plug in the networkcable to access the Internet, without unnecessary Settings, simple and convenient.

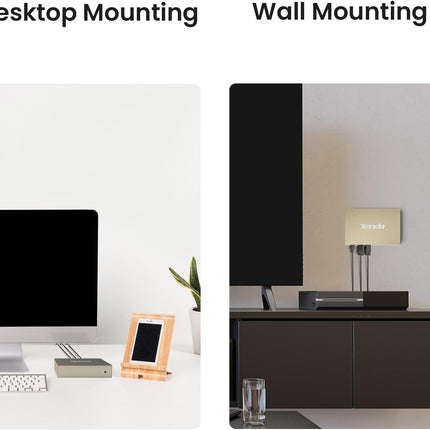

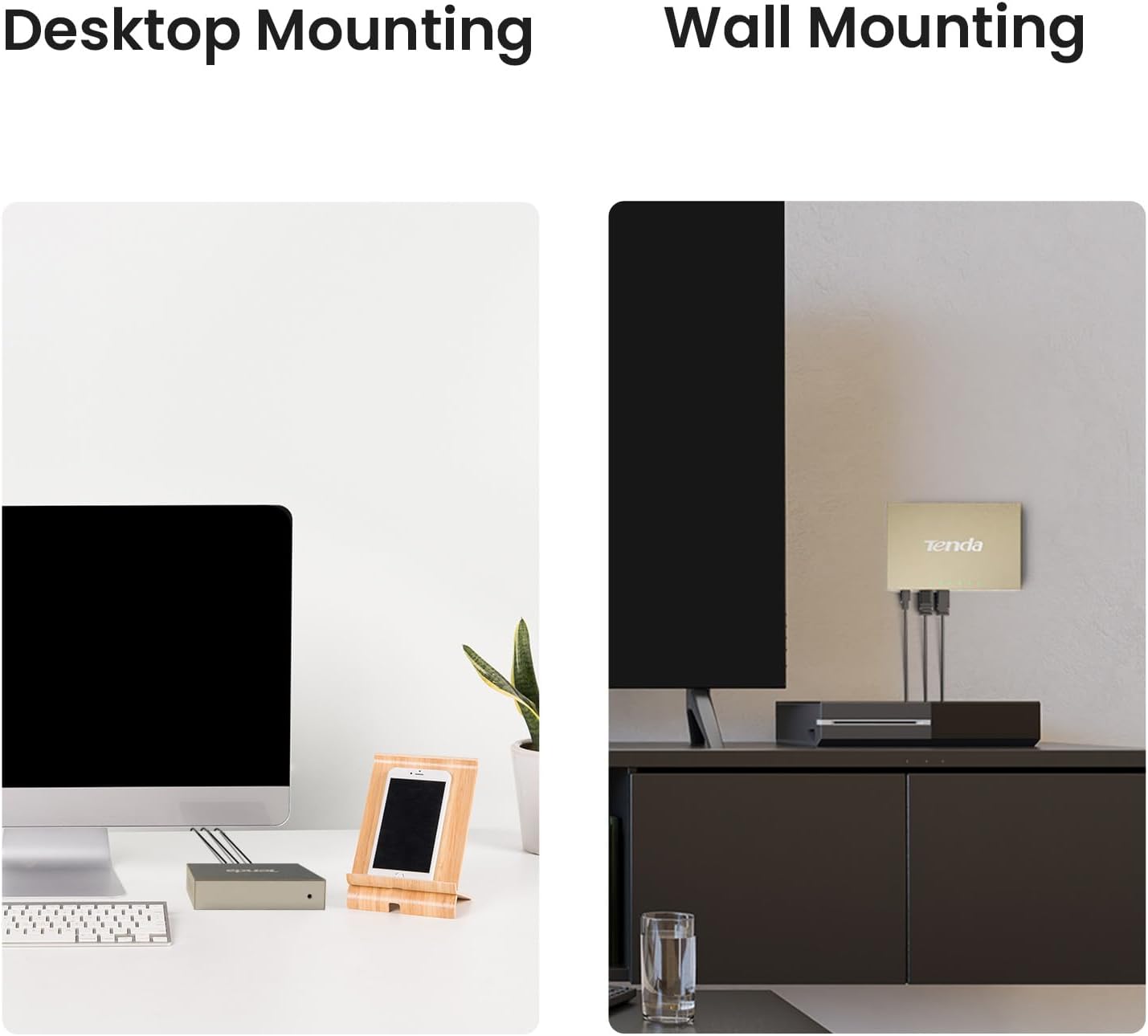

Wall Mounting,Neat Wiring: There are 2 wall mounting holes at the bottom of the switch.It can be fixed on the wall by screws,solve wiring and equipment clutter problems, make the network more beautiful.
Metal Body, Extraordinary Heat Dissipation: Industrial-grade metal stainless steel shell, durable, good heat dissipation, ensure the switches and stable operation, prolong the service life of products, outdoor security monitoring is more reliable.
A Ground Screw, More Security: The grounding screw is made of stainless steel and other corrosion resistant materials, which has good conductivity, corrosion resistance and wear resistance, and long-term stability, which adds a guarantee for your safety.
IGMP Snooping for Multicast Optimization: Ensure a better network experience by optimizing multimedia traffic transmission,This can ensure smooth play of video services while the users are watching IPTV.
Specifications:
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Interface: 5*10/100/1000M auto-Interface negotiation RJ45 ports (Auto MDI/MDIX)
Transmission Media:
10Base-T: Cat. 3 UTP or better
100Base-TX: Cat.5 UTP or better
1000Base-T: Cat.5e UTP or better
Forwarding Speed:
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
Power Supply:
Input: AC:100-240V; 50/60Hz
Output: 5.0V 0.6A (External Power Adapter)
Product Dimensions （L*W*H ）: 100mm×64mm×23 mm
LEDs: 1* Power; 5* Link/Act Switching Capacity: 10Gbps
MAC Address Table: 2K

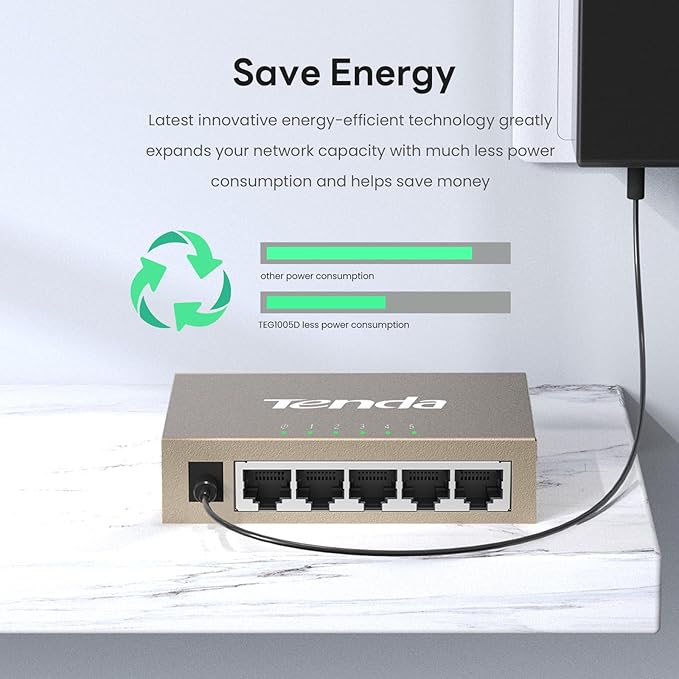

Power Consumption: Maximum : 2.5W (220V)
Lightning Protection: 6KV for ports
Transfer Method: Store and Forward
Access Control: CDMA/CD
L2 Features: IGMP Snooping V1/V2/V3
Jumbo frame: 15K
Temperature:
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Humidity:
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Compatible OS: Windows 8 32/64 bit, Windows 7 32/64 bit, Windows xp 32/64 bit, Linux, MAC OS Package Contents:
5-Port Gigabit Ethernet Switch
Power Adapter (5V 0.6A)
Quick Installation Guide
