Description TEG1008M is a high-performance 8-port full Gigabit desktop Ethernet switch designed for Tenda’s high-speed cascading scenarios for small and medium-sized surveillance, small and medium-sized businesses. Designed with a mini steel shell, it does not take up space and has a strong heat dissipation. Provides 8 10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments. The TEG1008M supports desktop/wall mount installation, plug and play, no setup, easy to use, and is ideal for improving network performance.
Highlights:
Gigabit Speed Support 5-12V DC Input
Wall mount & Plug-n-play
Metal Sheel, Stable Operation
8-Port Gigabit Ethernet Switch - TEG1008M
Full Gigabit Port, Full Speed Connection: Equipped with 8*GE, the transmission rate of up to 2000Mbps in full duplex mode. Adopt the highly integrated circuit design of enterprise-level standards, effectively solve the network jam, the loss of monitoring screen, and other problems in the networking environment
Plug And Play, Convenient Networking: Each port supports MDI/MDIX auto-flip. Plug in the networkcable to access the Internet, without unnecessary Settings, simple and convenient.
Wall Mounting,Neat Wiring: There are 2 wall mounting holes at the bottom of the switch.It can be fixed on the wall by screws,solve wiring and equipment clutter problems, make the network more beautiful.
Metal Body, Extraordinary Heat Dissipation: Industrial-grade metal stainless steel shell, durable, good heat dissipation, ensure the switches and stable operation, prolong the service life of products, outdoor security monitoring is more reliable.

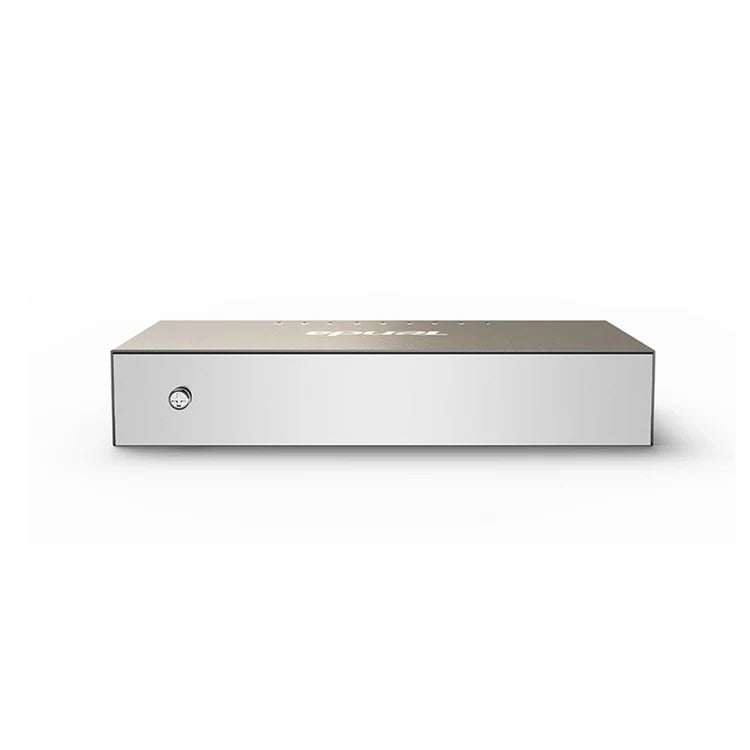

A Ground Screw, More Security: The grounding screw is made of stainless steel and other corrosion resistant materials, which has good conductivity, corrosion resistance and wear resistance, and long-term stability, which adds a guarantee for your safety.
IGMP Snooping for Multicast Optimization: Ensure a better network experience by optimizing multimedia traffic transmission,This can ensure smooth play of video services while the users are watching IPTV.
Specifications:
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Interfaces: 8*10/100/1000M RJ45 Ports
Network medium: Cat.5 UTP、Cat.5e UTP or better
Forwarding Rate:
10Mbps: 14880pps.
100Mbps: 148800pps.
1000Mbps: 1488000pps
Power:
Input: AC:100-240V; 50/60Hz
DC: 5-12V
Dimensions(W*D*H): 140*66.5*25.3mm LED Indicator: 1*Power; 8*Link/Act
Switching Capacity: 16Gbps
Mac Address Table: 8K
Power consumption: Max :3W
Transfer Method: Store-and-Forward
Protocol: CDMA/CD
MAC Address Learning: Auto learning & auto aging
Temperature:
Operating temperature: 0℃~40℃；
Storage temperature: -40℃~70℃
Humidity:
Operating humidity: 10%~90% non-condensing；
Storage humidity: 5%~90% non-condensing
Operation System: Windows 8 32/64 bit 、Windows 7 32/64 bit 、Windows xp 32/64 bit 、Linux 、MAC OS
Package Content:
1 * 8-Port 10/100/1000M Ethernet Desktop Switch
1 * Power adapter
1 * Quick installation guide
