Description

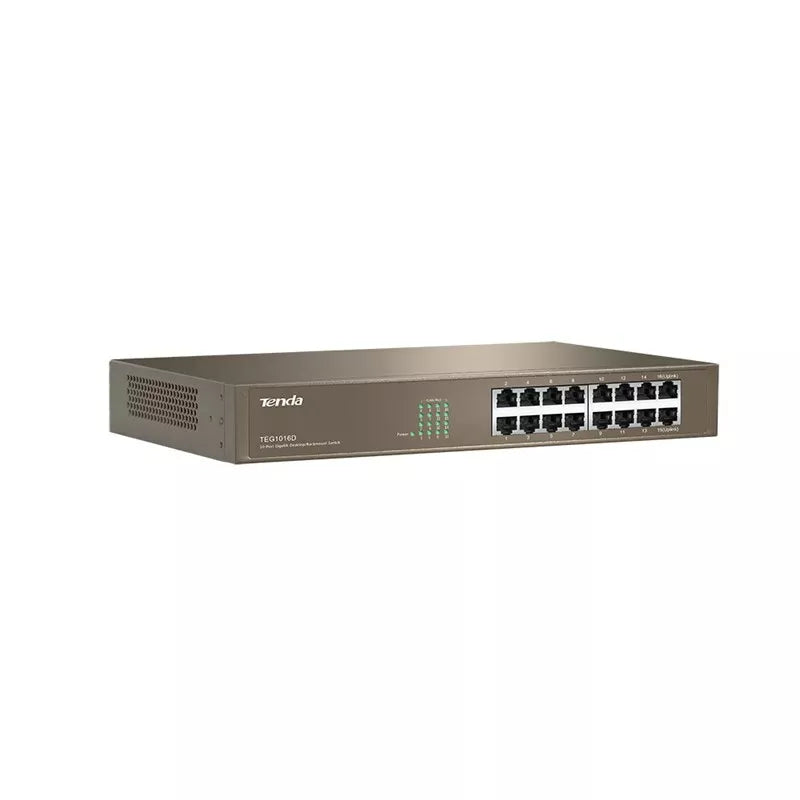

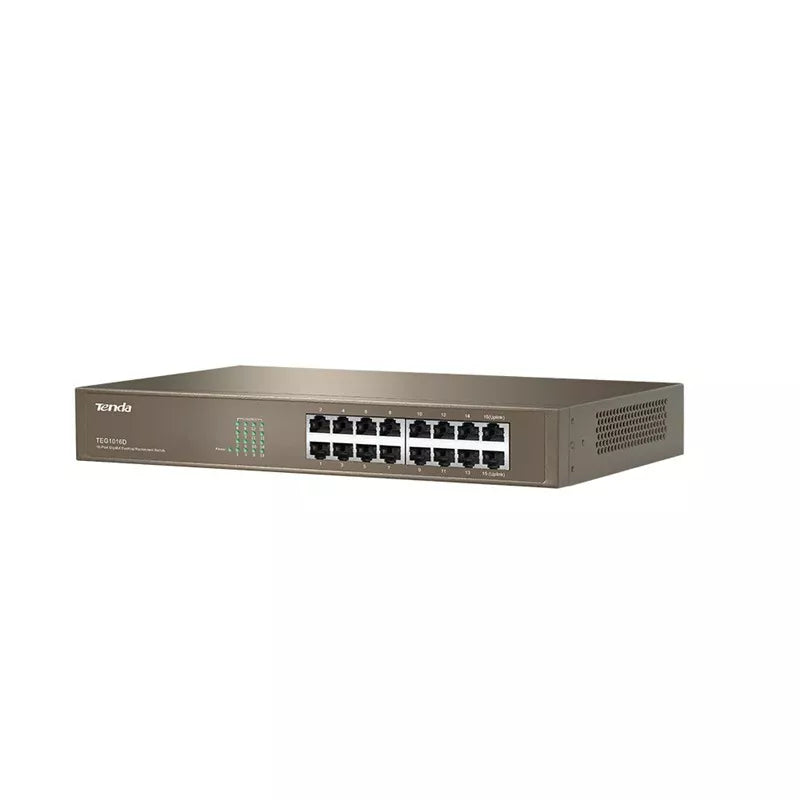

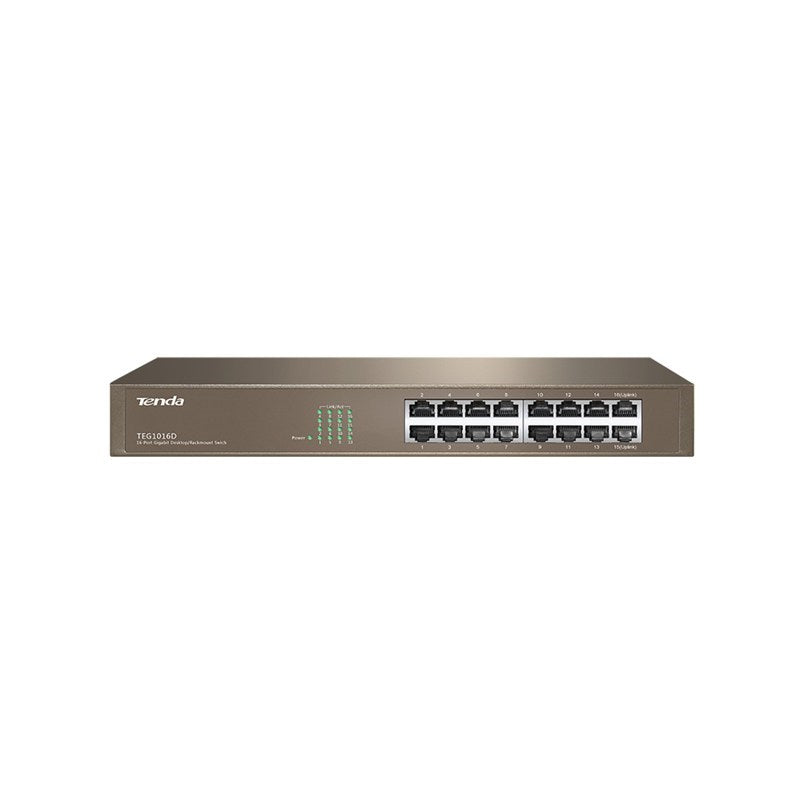

TEG1016D is a 16-port gigabit Ethernet switch independently designed by Tenda. The switch supports wire-speed forwarding of all ports to ensure smooth transmission of large files and video streaming. It features a compact metal body, and supports desktop, wall and rack mounting. As a flexible and simple-to-use device, it can be connected to such network devices as computers and network cameras. It is your ideal choice for video surveillance and wired networking in such scenarios as SMBs, communities, factories, and schools.
Highlights:
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- 16 10/100/1000 Base-T Ethernet ports
- 8K MAC address and MAC address automatic learning
- IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
- Plug and play
- 32Gbps non-blocking wire-speed forwarding backplane bandwidth
- 4Mb large buffer design
- With 13-inch body design, and support desktop, wall and rack mounting
Gigabit ports, high-speed network: The 16-gigabit ports enable you to experience lower latency and faster transfer speed, ensure instant transfer of large files and stable video streams and improve network usage experience in various scenarios.
High-performance Chip Achieve True Stability: Equipped with high-performance chips, more efficient operation and strong data processing capabilities make the network high-speed and stable.
Plug And Play, Make Networking Easier: Quick and easy Internet settings, simple enough for you to set up office networking,13-inch body design, and support desktop, wall and rack mounting.
6KV port lightning protection to ensure stable operation: The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
Specifications:
- Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- MTBF: 50,000 hours
- LED Indicators:
- One Link/Act LED indicator for each port
- One Power LED indicator for each device
- Ports: 16* 10/100/1000 Base-T Ethernet ports
- Lightning Protection: ≥6KV
- Switching Mode: Store-and-forward
- Switching Capacity: 32Gbps
- Forwarding Rate: 23.8Mpps
- MAC Address Table: 8K
- Buffer: 4Mb
- Jumbo Frame: 15K
- Input Voltage: AC: 100-240V 50/60Hz
- Dimensions (L × W × H): 294 mm x 120 mm x 44 mm
- Power Consumption: <12W
- Environment:
- Operating temperature: 0°C - 45°C
- Storage temperature: -40°C - 70°C
- Operating humidity: (10% - 90%) RH, non-condensing
- Storage humidity: (5% - 90%) RH, non-condensing
