Description

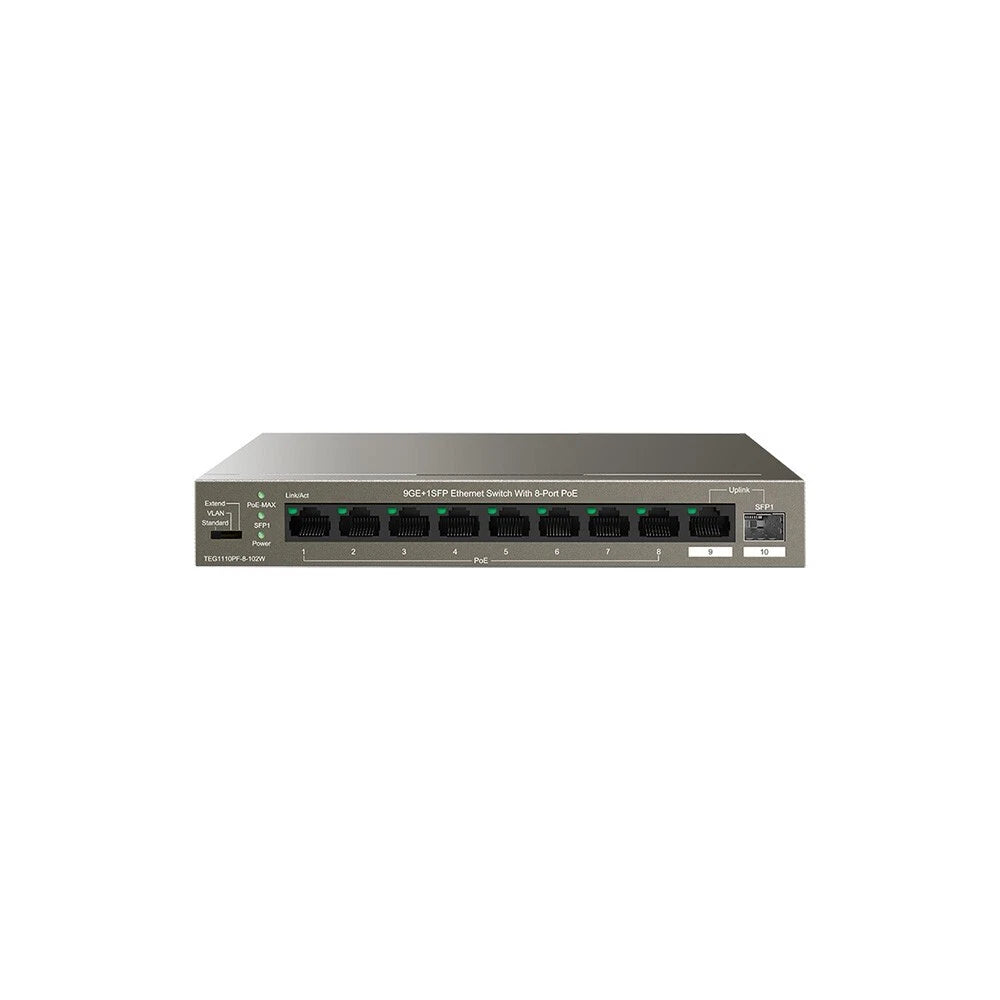

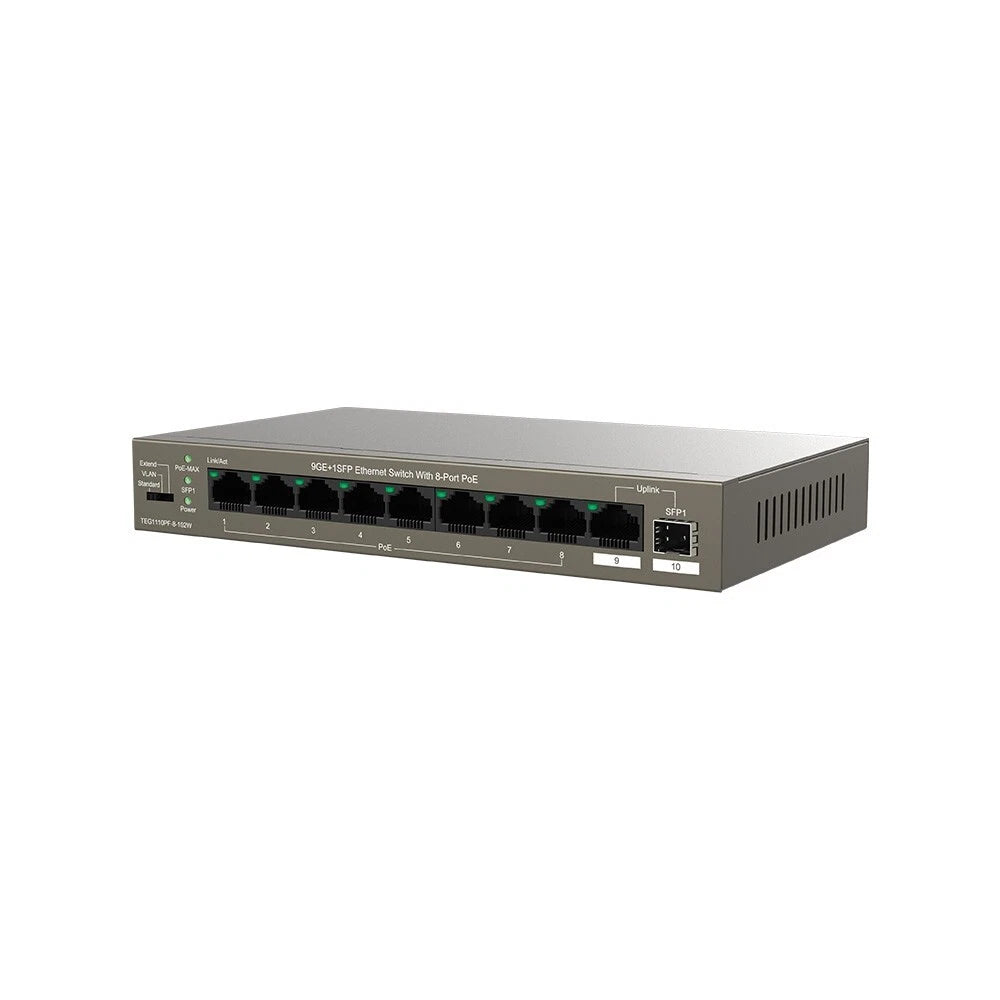

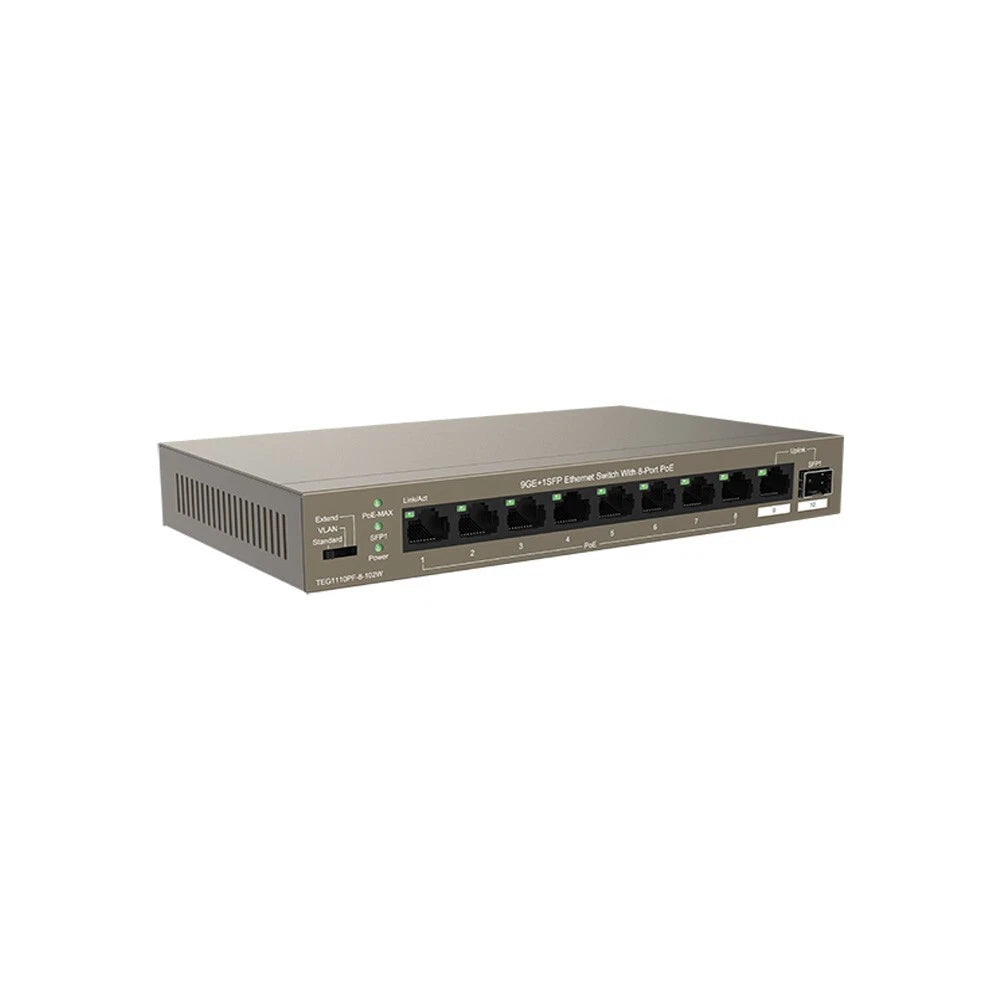

TEG1110PF-8-102W is a 10-port gigabit Ethernet unmanaged PoE switch independently designed by Tenda. It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total power consumption of the switch is 102 W. Supporting a three-mode toggle, TEG1110PF-8-102W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless networking in such scenarios as SMEs, residential areas, industrial parks, hotels and schools.
Highlights:
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at standards
- 8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power), 1 * 10/100/1000 Mbps Base-T Ethernet port (Data), 1 * 100/1000 Mbps Base-X SFP port
- 16 K MAC address table and MAC address auto-learning
- IEEE 802.3x full duplex flow control and backpressure half duplex flow control
- 20 Gbps switching fabric for non-blocking line-speed forwarding
- Maximum PoE output of a single port: 30 W
- Total power consumption of the switch: 102 W
- Three-mode toggle: Standard, VLAN, Extend
- Desktop installation & Wall mounting
Specifications:
-
Network Standards: IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
- MTBF: ≥100,000 hours
- LED Indicators:
- One Link/Act LED indicator for each port
- One PoE-MAX LED indicator for each device
- One Power LED indicator for each device
-
Ports:
- 8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)
- 1 * 10/100/1000 Mbps Base-T Ethernet port (Data)
- 1 * 100/1000 Mbps Base-X SFP port
-
Lightning Protection: ≥6 kV
- Switching Mode: Store-and-forward
- Switching Capacity: 20Gbps
- Forwarding Rate: 14.9 Mpps
- MAC Address Table: 16K
-
PoE Power Supply:
- IEEE 802.3af/at standards PoE power supply on ports 1-8 Voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is –
- Input Voltage: 100-240V AC,50/60Hz
- Dimensions (L*W*H): 177.5mm*104.0mm*26.0mm
- Power Consumption:
- Total power consumption: <102 W
- Maximum PoE output: 92 W
-
Three-Mode Toggle:
- Three-mode toggle through one DIP switch:
- 1. Standard: Default mode. In this mode, all ports can communicate with each other.
- 2. VLAN: In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storm.
- 3. Extend: In this mode, ports 1 - 8 decrease to 10 Mbps in negotiation rate, but transmit up to 250 m in distance. All ports can communicate with each other.
-
Environment:
- Operating temperature: 0°C - 45°C
- Storage temperature: -40°C - 70°C
- Operating humidity: (10% - 90%) RH, non-condensing
- Storage humidity: (5% - 90%) RH, non-condensing
