Description

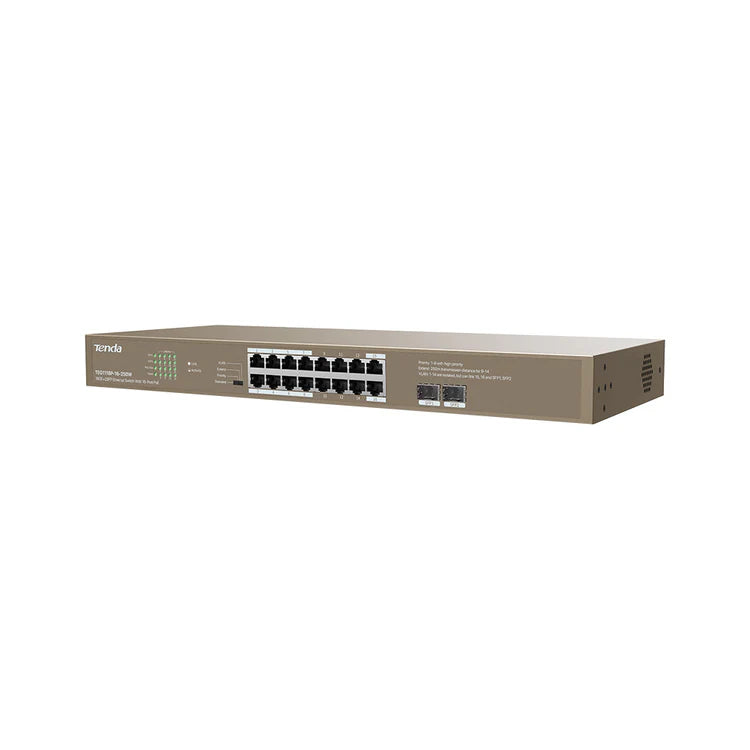

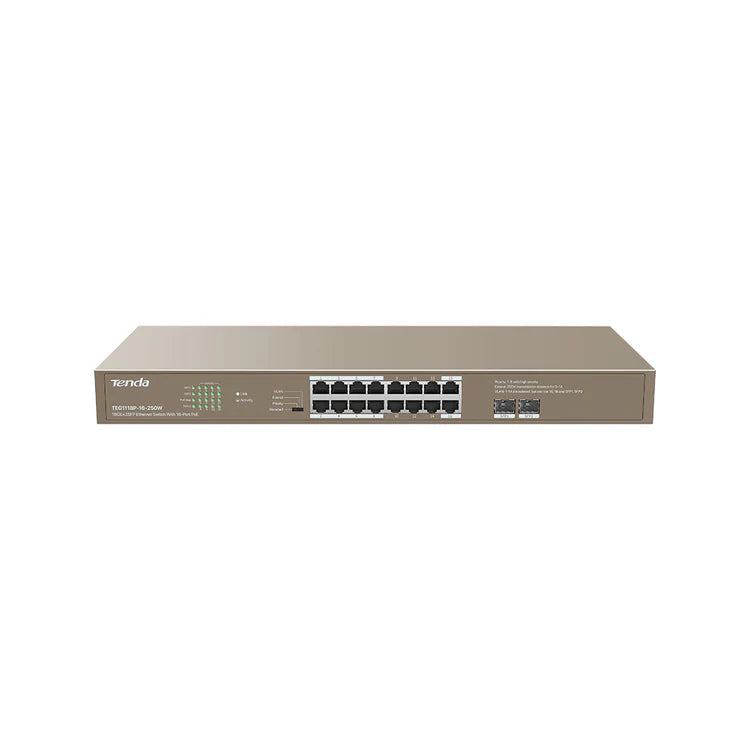

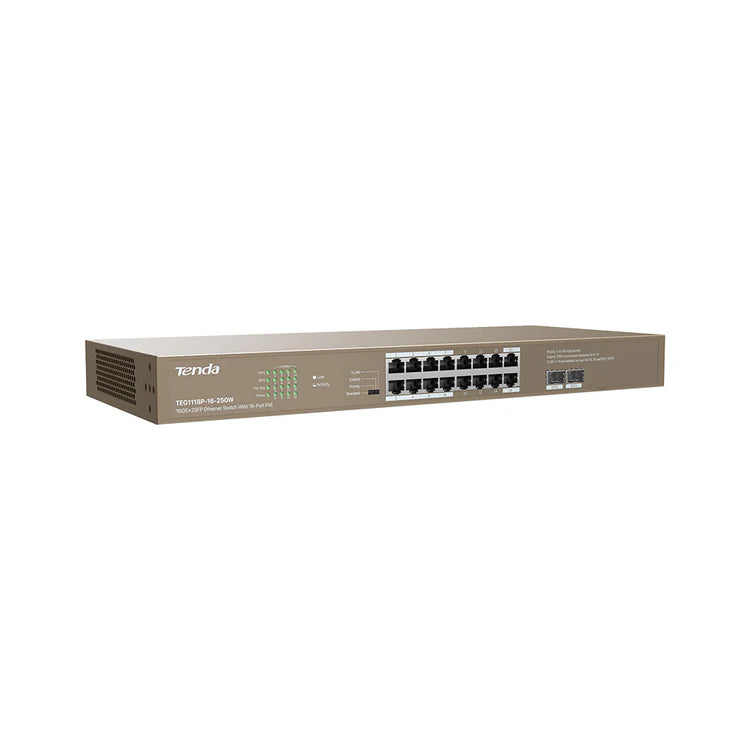

TEG1118P-16-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230W, and 30W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
Highlights:
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.
- 16 * 100/1000 Mbps Base-T RJ45 ports for data transmission and power supply, 2* 1000 Mbps Base-X SFP slot.
- 8K MAC address table and MAC address auto-learning.
- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.
- 36Gbps backplane bandwidth.
- Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 250W.
- 4 modes: standard, priority, extend and VLAN.
Specifications:
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at
- LEDs indicator:
- 16 * Link/Act LEDs
- 2 * SFP LED
- 1 * PoE-MAX LED
- 1 * Power LED
-
Interfaces:
- 16 * 100/1000 Mbps Base-T RJ45 ports (Data/Power)
- 2* 1000 Mbps Base-X SFP port
- Forwarding Rates: 26.8Mpps
- Switching capacity: 36Gbps
- MAC Address Table: 8K
- Lightning protection: ≥6KV
- Input voltage: AC: 100-240V~50/60Hz
- PoE supply:
- Ports 1-16 support standard IEEE802.3af/at
- 30W output per PoE port
- 230W output of the total PoE Power
- Power consumption: 250W output the whole device
- Dimensions: 440*178.8*44mm
- Four Modes:
-
Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
-
Priority: In this mode, port15,16, SFP1, SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately.
-
Extend: In this mode, data rate of ports 9 - 14 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
-
VLAN: In this mode, ports 1 - 14 of the switch can communicate with port 14,15, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast.
-
Environment:
- Operating Temperature: 0℃~45℃ (32℉~113℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
