Description

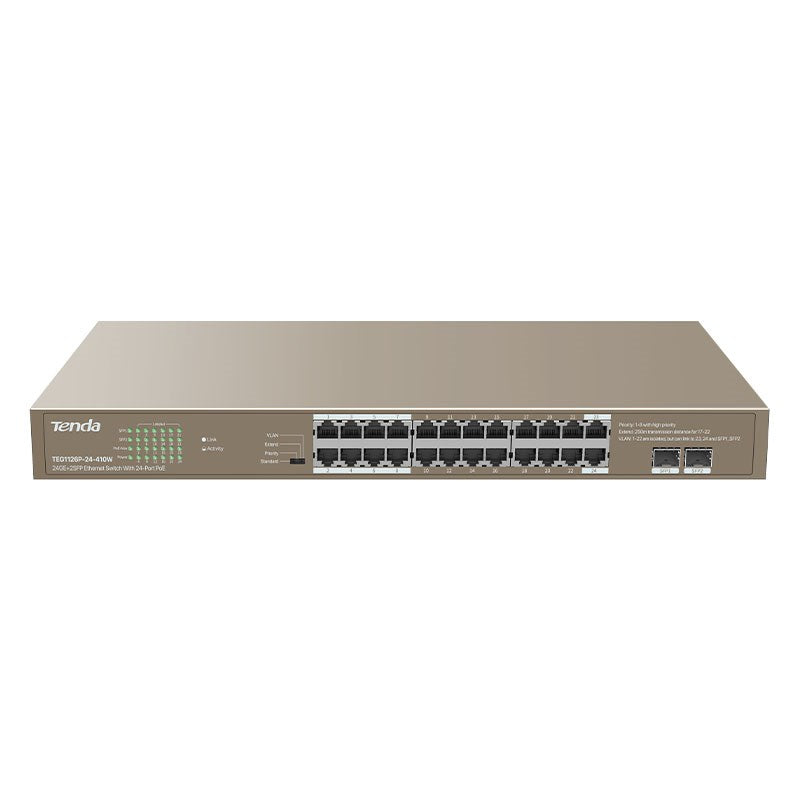

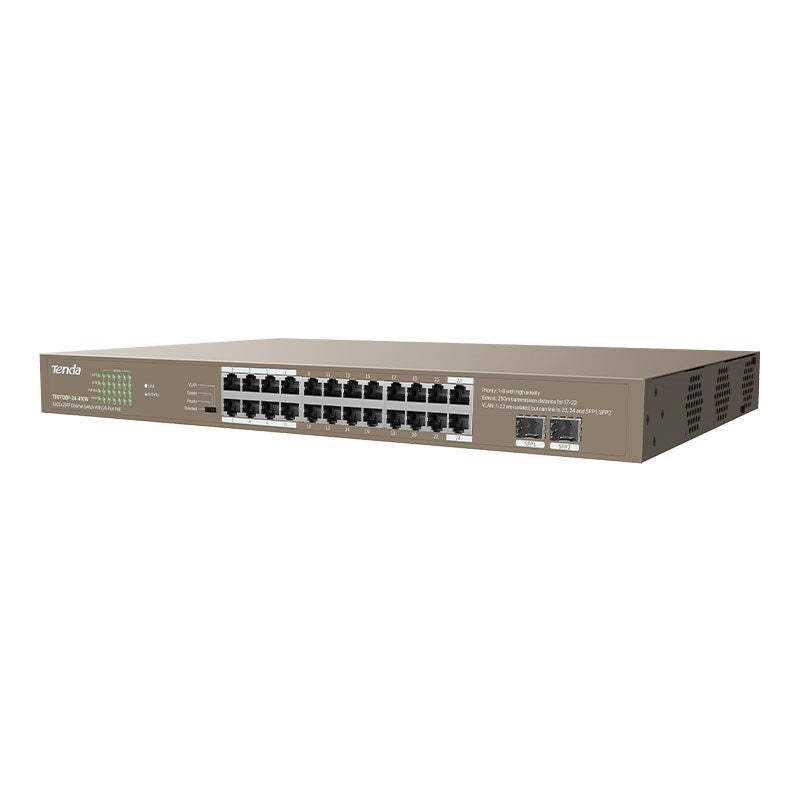

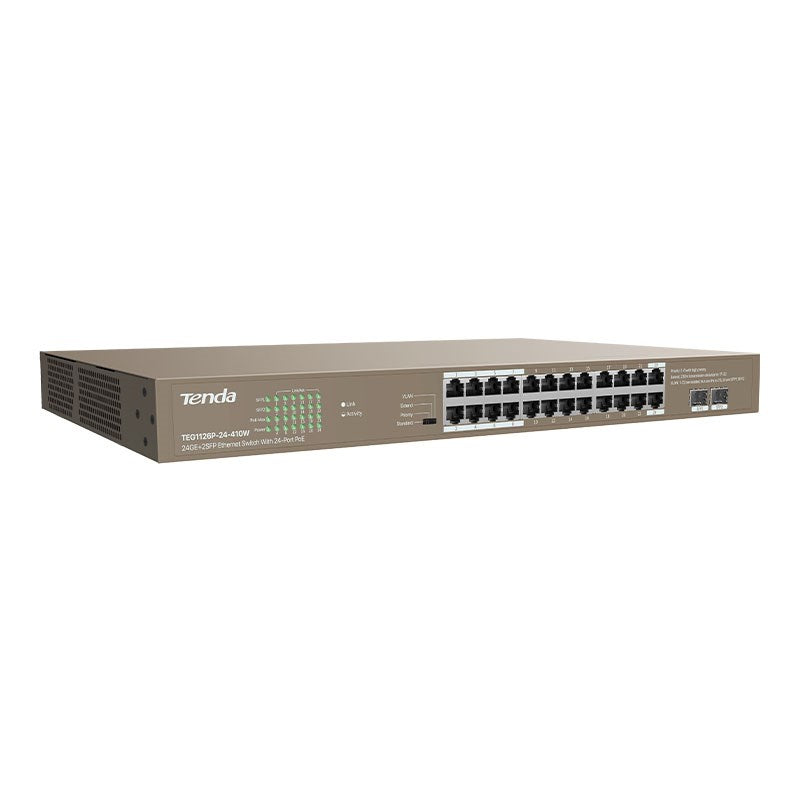

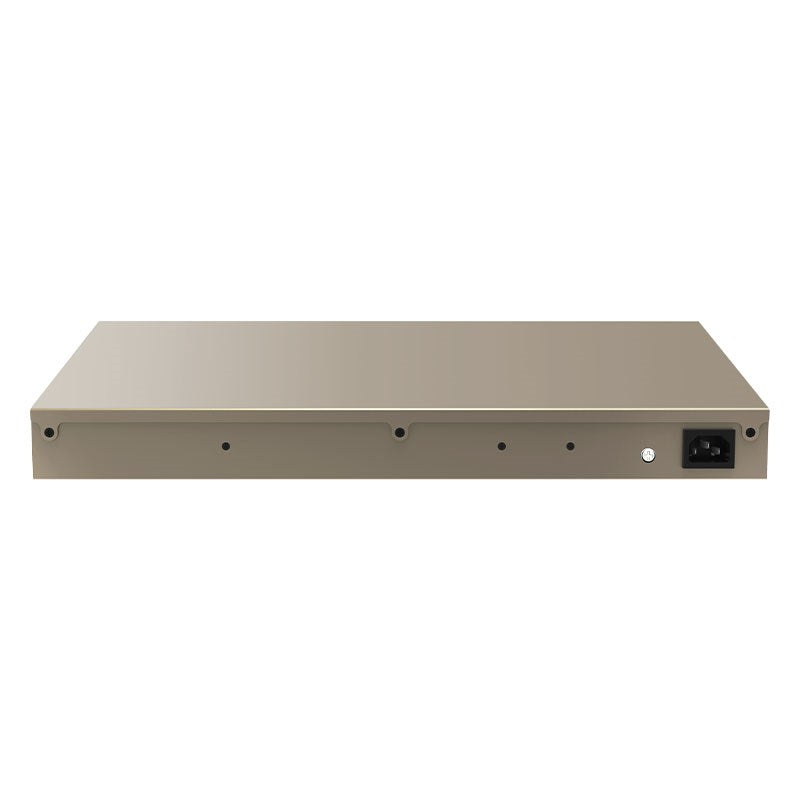

TEG1126P-24-410W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 370 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, which is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
Highlights:
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.
- 24 * 100/100 0Mbps Base-T RJ45 ports for data transmission and power supply, 2 * 1000 Mbps Base-X SFP slots（Combo）.
- 8K MAC address table and MAC address auto-learning.
- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.
- 48Gbps backplane bandwidth.
- Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 410W.
- 4 modes: standard, priority, extend and VLAN.
