Description

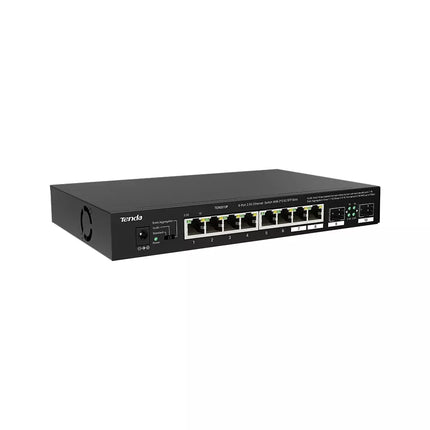

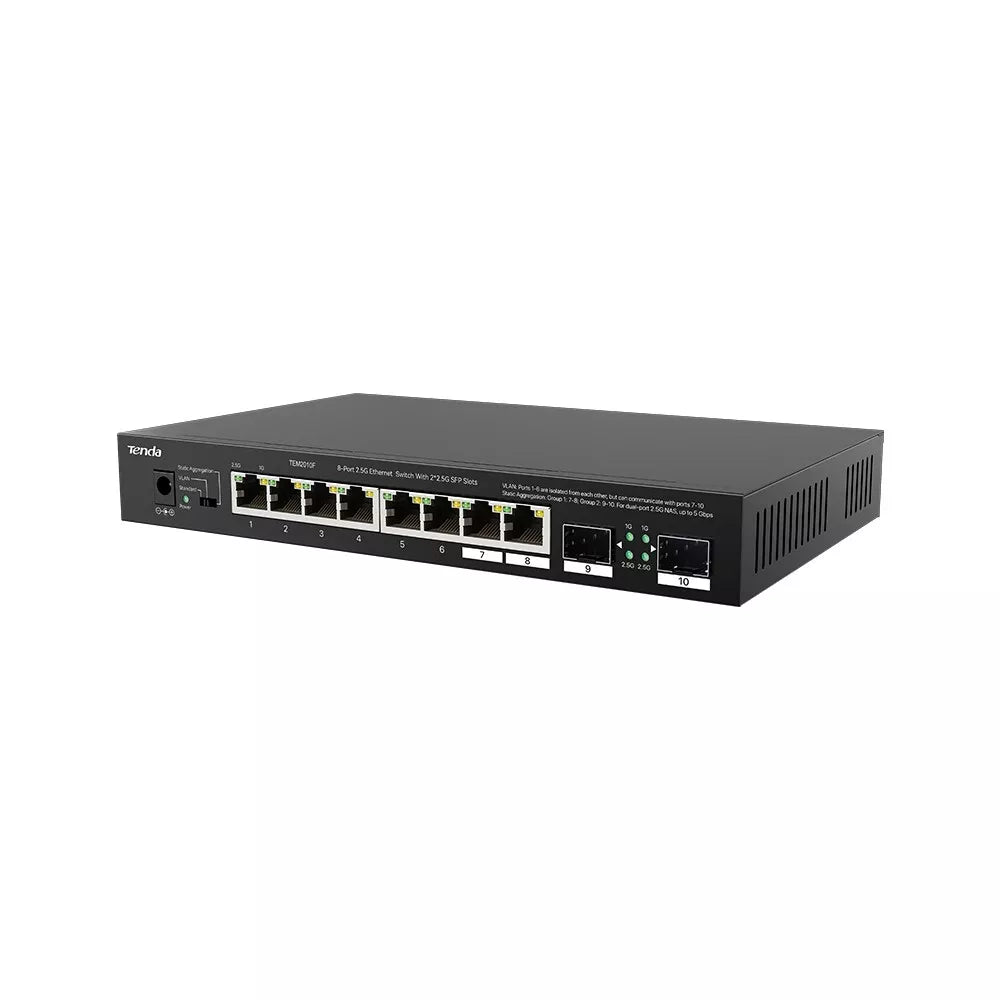

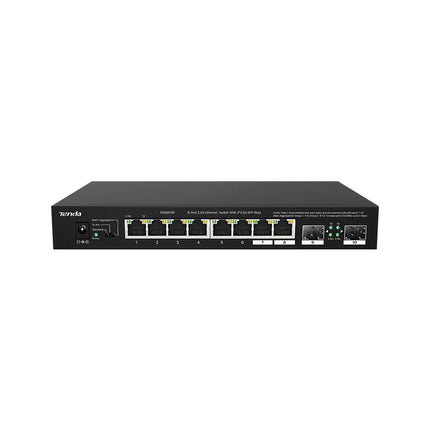

TEM2010F is an 8-port 2.5G Ethernet switch with 2 SFP ports independently designed by Tenda. The switch supports three-mode toggle and offers eight 2.5 Gbps RJ-45 ports and two 2.5 Gbps SFP ports, establishing high-speed network along with computers, NAS, TV set-up boxes, Wi-Fi6 APs and so on. TEM2010F is an ideal access device for high-speed network deployment in SMEs, SOHOs, villas or wireless networking scenarios.
Highlights:
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz, IEEE 802.3cb.
- 8*100/1000/2500 Mbps Base-TX Ethernet ports, 2*100/1000/2500 Mbps Base-X SFP ports
- 16 K MAC address table and MAC address auto learning.
- IEEE 802.3x full duplex flow control and half duplex backpressure flow control
- 50Gbps switching fabric for non-blocking wire speed forwarding
- 6kV Lightning Protection
- Three-mode toggle: Standard, VLAN, Static Aggregation Desktop mounting & Wall mounting
Specifications:
-
Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3bz，IEEE 802.3cb
- (MTBF)/MTBF: ≥100,000 hours
- LED Indicators:
- Two Link/Act LED indicators for each port
- One Power LED indicator for each device
-
Ports:
- 8*100/1000/2500 Mbps Base-TX Ethernet ports
- 2*100/1000/2500 Mbps Base-X SFP ports
-
Lightning Protection: ≥6 kV
- Forwarding Mode: Store and forward
- Switching Capacity: 50Gbps
- Forwarding Rate: 37.2Mpps
- MAC Address Table: 16K
- Input Voltage: AC: 100-240V 50Hz/60Hz
- Dimensions (L × W × H): 220mm*135.6mm*31.5mm（L*W*H）
- Three-mode Toggle:
- Three-mode toggle through one DIP switch:
- 1. Standard: In this mode, all ports can communicate with each other.
- 2. VLAN: Ports 1-6 are isolated from each other but can communicate with ports 7-10
- 3. Static Aggregation: Group 1: 7-8; Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps
-
Environment:
- Operating temperature: 0°C - 45°C
- Storage temperature: -40°C - 70°C
- Operating humidity: (10% - 90%) RH, non-condensing
- Storage humidity: (5% - 90%) RH, non-condensing
