Description

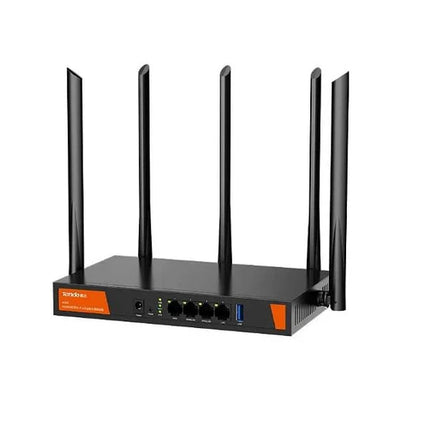

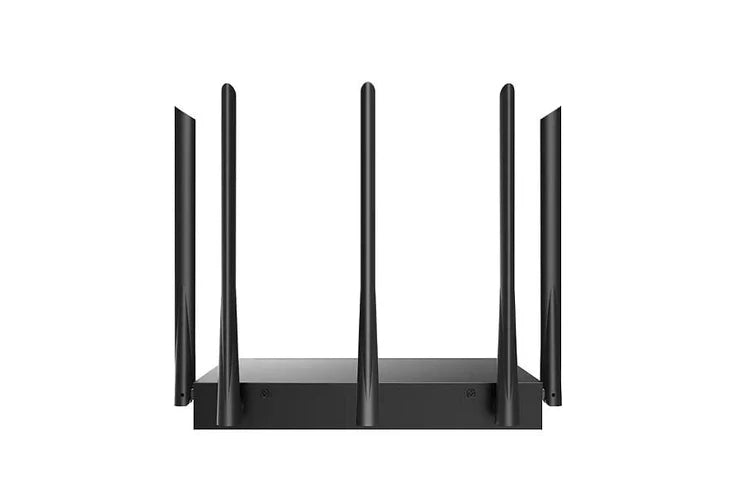

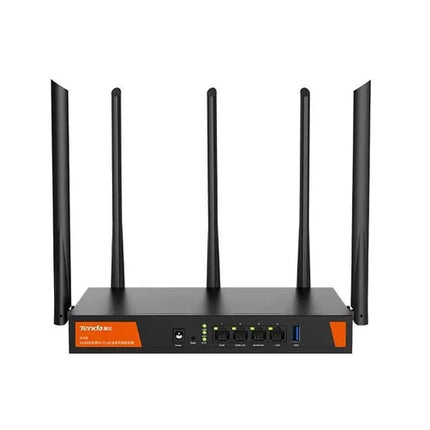

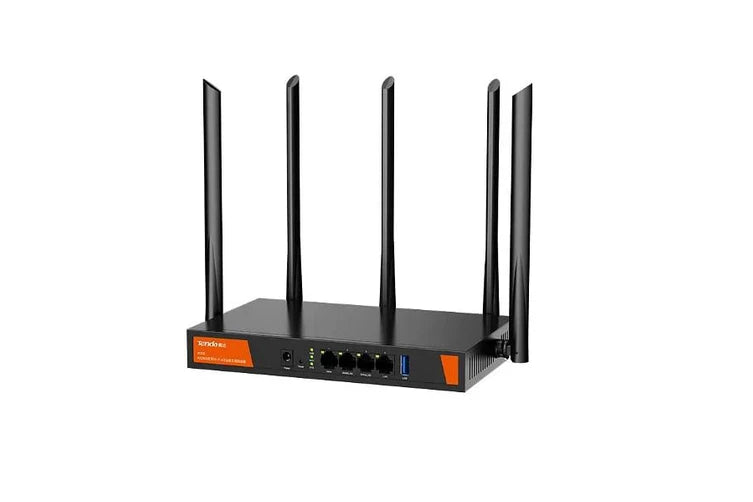

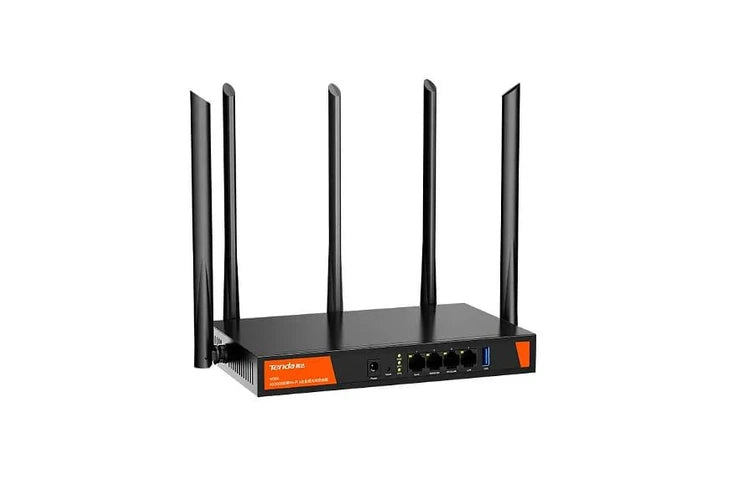

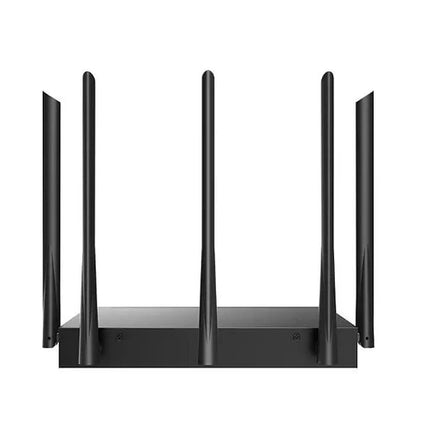

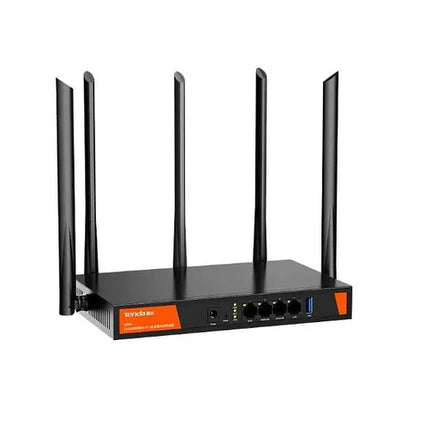

W30E is a brand-new Wi-Fi 6 enterprise-class wireless router specially designed for network deployment in SOHOs, SMEs, or small shops. It supports up to 3000 Mbps dual-band concurrency rate and 160MHz large bandwidth, which is about 155% faster than the mainstream 1200M Wi-Fi 5 routers. It's equipped with 2×2 MU-MIMO, OFDMA and other features, providing stable high-performance experience even in large multi-user scenarios. W30E adopts built-in enterprise-level functions such as user behavior management, AP management, VPN, attack defense, portal authentication to help enterprises develop efficiently.
Highlights:
- Dual-Band concurrent speed up to 3000 Mbps
- Provides 5 high-gain omni-directional antennas
- External professional-grade signal amplifier
- Full gigabit ports
- Supports up to 3 broadbands
- Supports 2×2 MU-MIMO
- Supports upstream and downstream OFDMA
Specifications:
- Overall Client Capacity (Wireless & Wired): 200 clients
- Wireless Client Capacity: 80 clients
- Captive Portal: 50
- CPU: 4 cores, 1.7 GHz
- Wireless Rate: 2.4GHz: 574 Mbps, 5GHz: 2402 Mbps
- Max. Transmit Power: 2.4GHz: 25 dBm, 5GHz: 25 dBm
- Ports: 4 * GE Ports
- Antenna:
- 2 * 2.4GHz 5dBi high gain antennas
- 3 * 5GHz 5dBi high gain antennas
- Power Adapter: DC 12V = 1.5A
- Dimension: 220 * 135 * 30 (mm)
- Environment:
- Operating temperature: 0 °C - 40 °C
- Operating humidity: 10% - 90% RH non-condensing
- Storage temperature: -40 °C - 70 °C
- Storage humidity: 5% - 90% RH non-condensing
- Internet Settings: 1 WAN (default), 3 WAN (maximum)/PPPoE/Dynamic IP/Static IP/ PPPoE (Russia)/PPTP (Russia)/L2TP (Russia)
- Wireless Settings: SSID and password/Network isolation/Wireless access control/Wireless advanced settings/Guest network
- Address Reservation: Quick address reservation for online clients/Manual address reservation individually or in batches
- Bandwidth Control: No limit/Manual/Auto/Limit by group
- File Sharing: Supports sharing files in USB devices within the LAN
- Filter Management: MAC address, IP address, port, URL filter/Internet log storage
- Authentication: Captive portal (one-key, local user, Email, WiFi via SMS)
- More Settings: LAN settings/Remote WEB management/Port forwarding/multi-WAN policy/ Port mirroring/UPnP/DDNS/DMZ host/Any IP (Hotel Mode)/IP attack defense/ VPN server/VPN client/IPSec/IPV6/DDNS
- System Maintenance: Reboot/Upgrade/Reset/Password manager/Reboot schedule/Backup or restore/System log/Diagnostic tool/System time/Function center
- System Status: Network topology/Traffic statistics/Status chart
