i27 is designed based on the new Wi-Fi 6 technology. It realizes a bandwidth of 160 MHz and a 5 GHz rate as high as 2.4 Gbps, a rate three times higher than that of ordinary Wi-Fi 5 APs and two times that of ordinary Wi-Fi 6 APs. The application of such new technologies as OFDMA, spatial multiplexing, and MU-MIMO drives the network capacity of a single i27 to 4 times higher. i27 is a perfect choice for such locations as businesses and hotels to deploy high-performance Wi-Fi networks.
Highlights:
Up to 3000 Mbps dual-band data rate
The new WPA3 encryption mode safeguards your network security
OFDMA, UL/DL and MU-MIMO technologies provide higher client capacity
Seamless roaming guarantees no dropped voice or video calls even when moving
Specifications:
Category: Ceiling
Dimensions: 178mm * 38mm
Frequency band: 2.4 GHz, 5 GHz
Wireless standards: IEEE 802.11a/b/g/n/ac/ax
2.4 GHz data rate: 1-574 Mbps
5 GHz data rate: 6-2402 Mbps
Channel width: 20 MHz/40 MHz/80 MHz/160 MHz
MU-MIMO: 2X2 MU-MIMO
Ethernet port: One 10/100/1000 Mbps Ethernet Port (PoE)
LED indicator: RGB
Max. power consumption: 13.04W
Power supply standard: IEEE 802.3at PoE
Concurrent clients: 254
Antenna gain: 2*4dBi
2.4 GHz Max. output power: 27+/-1.5 dBm
5 GHz Max. output power: 26+/-1.5 dBm
802.11b RX sensitivity: -99 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity: -78 dBm
5 GHz 802.11a RX sensitivity: -97 dBm
5 GHz 802.11n (MCS7) RX sensitivity: -77 dBm
Operating mode: AP、AP + Client
Hide SSID: Supported
Max. No. of SSID: 2.4 GHz: 8 / 5 GHz: 8
OFDMA: Supported
Beamforming: Supported
TWT: Supported
Fast roaming: Supported
802.11 k/v: Supported
WPA3-ASE: AES
WPA2-PSK: AES/TKIP
WPA2: Supported
Access control: MAC address-based
Adjustable power transmission: Supported
Frequency analysis: Supported
AP isolation: Supported
Connected client control: Supported
RSSI threshold: Supported
VLAN tagging for SSID: Supported
LED indicator control: Supported
Diagnostics tool: Ping, Traceroute
Scheduled reboot: Supported
Reboot at specified interval: Supported
Default login IP address: 192.168.0.254
Default username/password: admin/admin
Operating temperature: -10℃ - 45℃
Operating humidity: (10% - 90%) RH, non-condensing
Storage temperature: -30℃ - 70℃
Storage humidity: (10% - 90%) RH, non-condensing

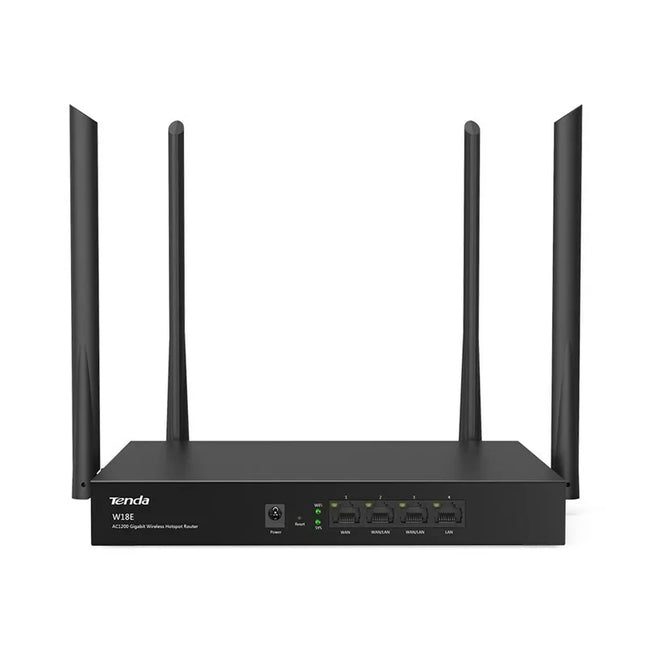

W18E is an enterprise-level wireless router specially created for small and micro-enterprise offices, street shops, large apartment networking and other scenarios. Independent signal amplifier, metal body, super heat dissipation, can also maintain a stable high-performance network experience in multi-user big scenarios, built-in multi-WAN superposition, user behavior management, intelligent bandwidth control, VPN, network attack protection and other enterprise-level enterprise levels and other enterprise levels Functions to meet the network functional needs of different business enterprises.
Highlights:
Dual-Band concurrent speed up to 1200 Mbps
Provides 4 high-gain omni-directional antennas
External professional-grade signal amplifier
Full gigabit ports
Supports up to 3 broadbands
Supports MU-MIMO

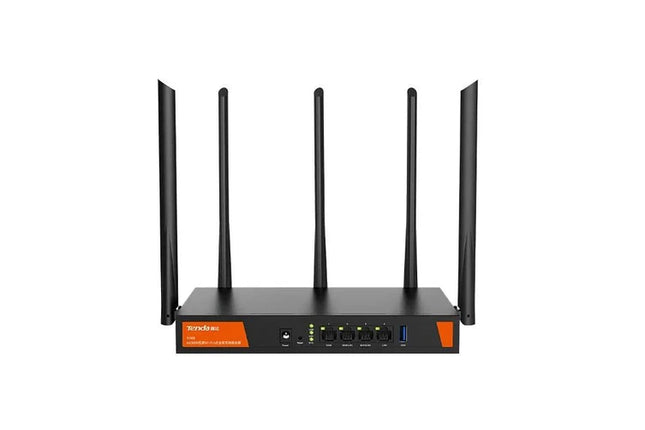

W30E is a brand-new Wi-Fi 6 enterprise-class wireless router specially designed for network deployment in SOHOs, SMEs, or small shops. It supports up to 3000 Mbps dual-band concurrency rate and 160MHz large bandwidth, which is about 155% faster than the mainstream 1200M Wi-Fi 5 routers. It's equipped with 2×2 MU-MIMO, OFDMA and other features, providing stable high-performance experience even in large multi-user scenarios. W30E adopts built-in enterprise-level functions such as user behavior management, AP management, VPN, attack defense, portal authentication to help enterprises develop efficiently.
Highlights:
Dual-Band concurrent speed up to 3000 Mbps
Provides 5 high-gain omni-directional antennas
External professional-grade signal amplifier
Full gigabit ports
Supports up to 3 broadbands
Supports 2×2 MU-MIMO
Supports upstream and downstream OFDMA
Specifications:
Overall Client Capacity (Wireless & Wired): 200 clients
Wireless Client Capacity: 80 clients
Captive Portal: 50
CPU: 4 cores, 1.7 GHz
Wireless Rate: 2.4GHz: 574 Mbps, 5GHz: 2402 Mbps
Max. Transmit Power: 2.4GHz: 25 dBm, 5GHz: 25 dBm
Ports: 4 * GE Ports
Antenna:
2 * 2.4GHz 5dBi high gain antennas
3 * 5GHz 5dBi high gain antennas
Power Adapter: DC 12V = 1.5A
Dimension: 220 * 135 * 30 (mm)
Environment:
Operating temperature: 0 °C - 40 °C
Operating humidity: 10% - 90% RH non-condensing
Storage temperature: -40 °C - 70 °C
Storage humidity: 5% - 90% RH non-condensing
Internet Settings: 1 WAN (default), 3 WAN (maximum)/PPPoE/Dynamic IP/Static IP/ PPPoE (Russia)/PPTP (Russia)/L2TP (Russia)
Wireless Settings: SSID and password/Network isolation/Wireless access control/Wireless advanced settings/Guest network
Address Reservation: Quick address reservation for online clients/Manual address reservation individually or in batches
Bandwidth Control: No limit/Manual/Auto/Limit by group
File Sharing: Supports sharing files in USB devices within the LAN
Filter Management: MAC address, IP address, port, URL filter/Internet log storage
Authentication: Captive portal (one-key, local user, Email, WiFi via SMS)
More Settings: LAN settings/Remote WEB management/Port forwarding/multi-WAN policy/ Port mirroring/UPnP/DDNS/DMZ host/Any IP (Hotel Mode)/IP attack defense/ VPN server/VPN client/IPSec/IPV6/DDNS
System Maintenance: Reboot/Upgrade/Reset/Password manager/Reboot schedule/Backup or restore/System log/Diagnostic tool/System time/Function center
System Status: Network topology/Traffic statistics/Status chart
The 5G01 is an AX1500 Wi-Fi 6 5G NR router, combining powerful features such as 5G/4G full-network connectivity, ultra-fast gigabit downloads speeds, Mesh, and plug-and-play convenience. It supports simultaneous Wi-Fi sharing for up to 64 devices. With its lightning-fast 5G network and advanced Wi-Fi 6 technology, coupled with intelligent system support, it provides you with high-speed, stable, and user-friendly network experience.
Highlights:
Ultra Gigabit Downloading, One Step Ahead
Ultra-fast Uploading, Living and Streaming
Latest generation of Wi-Fi 6
Up to 64 Devices, Stable Connection
Plug and Play, No Configuration Required
Ultra-wide Coverage with Mesh
Smart Network Backup, Always Use Faster Network
AX1500 Wi-Fi 6 5G NR Router - 5G01
Ultra Gigabit Downloading, One Step Ahead: Featuring a 12nm advanced process chip with a dual-core CPU and support for 4 carrier aggregations, the 5G01 achieves a theoretical download speed of 2.2Gbps, easily enjoy the boundless fun of gaming, e-sports, binge-watching, and more.
Ultra-fast Uploading, Living and Streaming: It adopts powerful 5G cellular technology, the uplink speed is boosted to 1Gbps, which is 20 times faster than 4G upload speeds, ensuring smoother and more stable experiences for activities like HD live streaming, video calls, and remote meetings.
Latest generation of Wi-Fi 6: Supports MU-MIMO for both downloading and uploading,simultaneously supports multiple devices to share up to gigabit high-speed Wi-Fi perfectly compatible with your existing Wi-Fi devices.
Up to 64 Devices, Stable Connection: With OFDMA technology and BSS Coloring mechanism, 5G01 allows you to connect up to 64 devices simultaneously, sharing your happy hours with your friends together!
Plug and Play, No Configuration Required: Supporting up to twelve 5G bands, integrated with thousands of operators'parameters. Plug and play, anytime, anywhere.
Ultra-wide Coverage with Mesh: 5G01 is adapting Tenda Mesh system, allowing multiple satellite routers to easily form a network without the need for configuration, achieving high-speed Wi-Fi coverage throughout large households.
*WiFi+ is exclusive to Tenda devices that support mesh functionality.
Smart Network Backup, Always Use Faster Network: In case of poor network conditions, it can seamlessly transition between wired and 5G networks, ensuring stable signals and an exceptional surfing experience.
Specifications:
Cellular Technologies: 5G/4G/3G multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA
5G NR 3GPP: Release 15
4G Category: DL: Cat12/UL: Cat13
5G NR Peak Download Speed: SA: 2 Gbps, NSA: 2.2Gbps
5G NR Peak Upload Speed: SA: 1 Gbps, NSA: 575Mbps
NR Frequency Band:
5G SA NR: (Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n77, n78)
5G NSA NR (Bands n1, n3, n7, n38, n40, n41, n66, n77, n78)
FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 20, 28)
TDD-LTE (Bands 38, 40, 41, 66)
WCDMA (850, 900, 1900, 2100 MHz)
5G NR Download MIMO:
n1/n41/n77/n78 4*4 MIMO
n28 2*2 MIMO
5G NR Modulation: 256QAM
Wireless Connectivity: Wi-Fi 6 (802.11ax) with 2x2 MIMO
Wi-Fi speed: 300Mbps on 2.4 GHz; 1201Mbps on 5 GHz
Wi-Fi standards: 802.11b/g/n, 802.11ac, 802.11AX
Wi-Fi frequency: 2.4GHz, 5GHz
Wi-Fi transmit Power: 2.5GHz: up to 20dBm; 5GHz: up to 23dBm
Ethernet Ports:
1 × 10/100/1000 Mbps LAN/WAN Port
1 × 10/100/1000 Mbps LAN Port
SIM Card: 1 × Nano-SIM(4FF) Card Slot
Button:
1 × Power on/off
1 × RST hole
1 × Mesh
Antennas and Ports:
4 × Internal 5G/4G Antennas
2 × Internal Wi-Fi Antennas
LED indicators:
1 × Internet indicator
1 × 5G/4G signal
1 × Wi-Fi indicator
Power supply:
Power adapter: Input power AC 100V-240V 50/60Hz
Output power: DC 12V==1.5A
WAN Type: 4G/5G or Wired
5G/4G Features:
Auto-APN
5G SA/NSA dual mode
Auto dial-up
5G Location optimization
Roaming
SMS(Send/Receive/Delete)
USSD
Data limited
PIN Management
Wi-Fi functions: WPS
Wi-Fi security: WPA3-SAE/WPA2-PSK, WPA2-PSK
Software features:
WiFi+ (Mesh)
Parental control
DHCP (DHCP Server and Client)
Guest Wi-Fi
Upgrade firmware from local or OTA
IPV4/IPV6 dual stack
Local/remote management/APP
TR069
Temperature:
Operating Temperature: 0℃~40℃
Storage Temperature: -30ºC~70ºC
Humidity:
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 90% RH Non-condensing
In the Box:
1 * 5G NR Router
1 * Ethernet cable
1 * Power adapter
1 * User Guide
All new 5G network, fast WiFi6 and exceptional smart system. With all the new techs, now, introducing 5G03, the innovative Internet access entrance for you, most advanced geek pioneers, and the most advanced internet experience for you. Also, 5G03's deep black and delicate design of texture and highlight on the surface take our progressive geek philosophy to a new dimension.
Highlights:
It’s all about 5G
Wi-Fi 6, boost your home Wi-Fi
Smart network, smart experience
All for pioneers
Specifications:
HARDWARE SPECIFICATIONS
Processor
7nm, Quad cores,core frequency 2 GHz
Cellular Technologies
5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA
5G NR 3GPP
Release 15
5G NR Peak Download Speed
4.67 Gbps
5G NR Peak Upload Speed
1.25 Gbps
NR Frequency Band
5G NR (Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78)
FDD-LTE (Bands 1, 3, 5, 7, 8, 20, 28, 32)
TD-LTE (Bands 38, 40, 41, 42, 43)
WCDMA (850, 900, 2100 MHz)
5G NR Download MIMO
SISO,2*2,4*4
5G NR Upload MIMO
SISO,2*2
5G NR Download Modulation
QPSK, 16QAM,64QAM,256QAM
5G NR Upload Modulation
QPSK, 16QAM,64QAM,256QAM
Wireless Connectivity
Wi-Fi 6 (802.11ax) with 2x2 MIMO
Wi-Fi speed
574Mbps on 2.4 GHz
1201Mbps on 5 GHz
Wi-Fi standards
802.11b/g/n,802.11ac,802.11AX
Wi-Fi frequency
2.4GHz,5GHz
Wi-Fi transmit Power
2.5GHz:up to 20dBm
5GHz: up to 23dBm
Ethernet Ports
1 × 10/100/1000 Mbps LAN/WAN Port
1 × 10/100/1000 Mbps LAN Port
SIM Card
SIM Card: 1 x nano-SIM(4FF)
Button
1× Power on/off
1× RST hole
1×MESH/WPS
Antennas and Ports
8 × Internal 5G/4G Antennas
2 × Internal Wi-Fi Antennas
2 × TS-9 antennas ports
SOFTWARE SPECIFICATIONS
WAN Type
4G/5G or Wired
5G/4G Features
Auto-APN
5G SA/NSA dual mode
Auto dial-up
5G Location optimization
5G/4G E-UTRAN New Radio–Dual Connectivity
Roaming
SMS(Send/Receive/Delete)
USSD
Data limited
PIN Management
Wi-Fi functions
Broadcast and Hide Wi-Fi name
Priority 5GHz Wi-Fi
Guest network
Wi-Fi schedule
OFDMA
MU-MIMO
Wi-Fi security
WPA2/WPA3,WPA/WPA2,WPA2-PSK,WPA-PSK,WEP
Software features
EasyMesh
Parental control
DHCP(DHCP Server and Client)
Virtual Server(UPnP/DMZ/Port Forwarding)
DDNS(DynDns, 88ip)
VPN(PPTP Client/L2TP Client/PPTP Server/IPSEC)
Firewall
QOS
Upgrade firmware from local or OTA
CERTIFICATIONS
Certifications
FCC Granted
CE Granted
ROHS Granted
WORKING ENVIRONMENT
Temperature
Operating Temperature: 0℃~40℃
Storage Temperature: -30ºC~70ºC
Humidity
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 90% RH Non-condensing
PACKAGE LISTS
Contents
1 * 5G NR Router
1 * Ethernet cable
1 * Power adapter
1 * User Guide

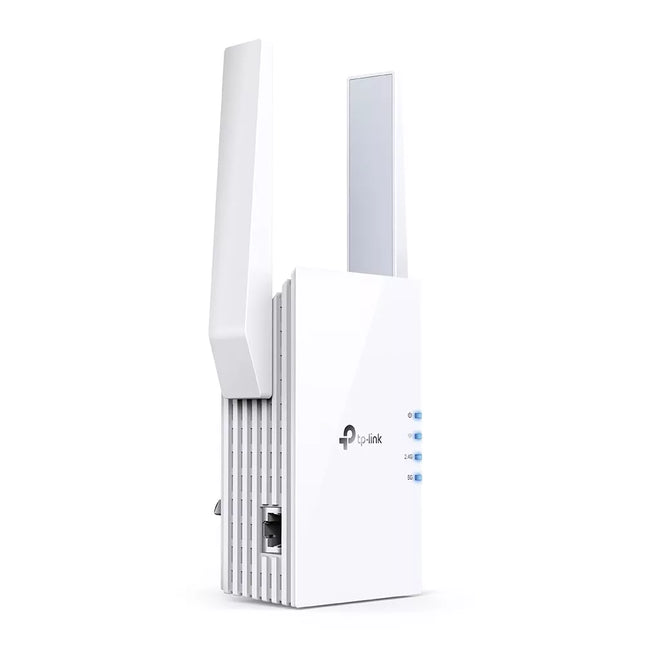

A single router has limited WiFi coverage and always causes WiFi dead zones. RE605X wirelessly connects to your existing router and boosts more WiFi signals throughout your home, allowing you to enjoy smooth WiFi 6 network experiences everywhere with great speed, capacity, and coverage.
Highlights:
RE605X is equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
Lightning-Fast WiFi 6
Tri-Band Wireless
Broader Coverage
Lower Latency Gameplay
Improved Security
WiFi 6E: A Freer and Faster Future: WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.
Greater Coverage and Stability: The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.Lower Latency, Higher Efficiency, and Less Congestion, MU-MIMO: Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.OFDMA: Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.USB 3.0 for Superior Transfer Speeds: Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TXE70UH ideal for HD streaming, online gaming and large file downloads.Easy Use with a Flexible Design: A 1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TXE70UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.

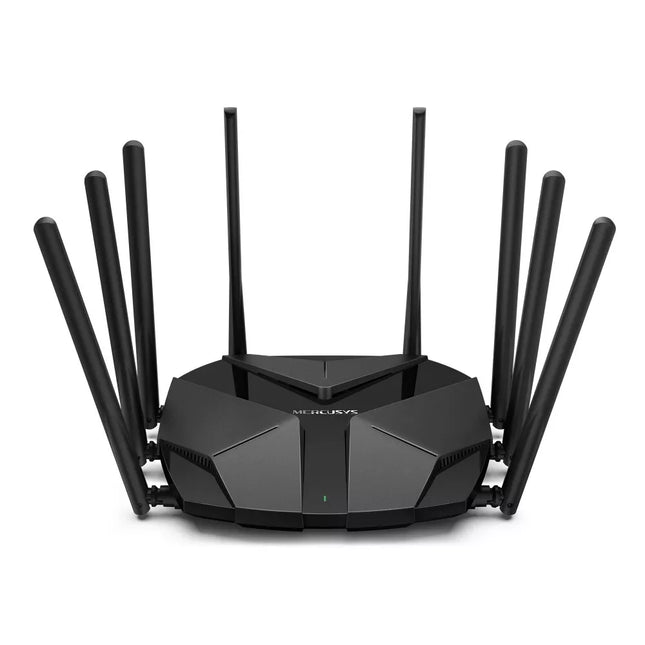

Super-Fast WiFi 6 to 6 Gbps Armed with 160 MHz channels and 1024-QAM,1 MR90X provides dramatically faster wireless connections. The speed goes up to 6000 Mbps – 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz. MR90X is 2.3× faster than the 802.11ac 4×4 dual-band router.
Highlights:
Optimal WiFi 6 speeds reaching up to 6 Gbps for faster browsing, streaming, and downloading, all at the same time
Break through the 1G bottleneck and drive your devices to peak performance
Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
8× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
The latest WPA3 provides improved WiFi security
