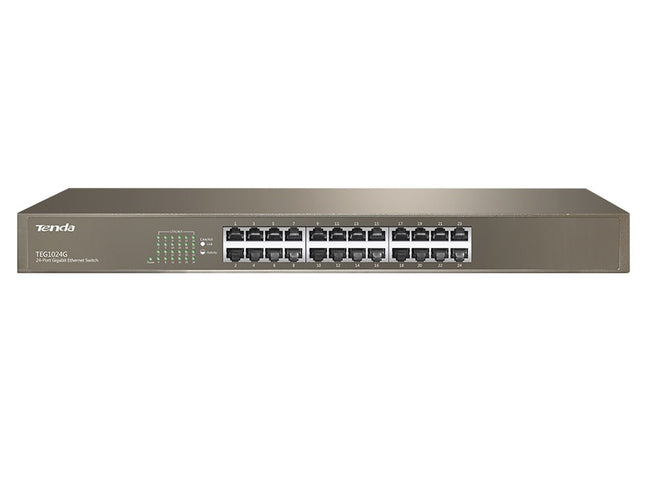

TEG1024G is a 24-port gigabit Ethernet switch independently designed by Tenda. The switch supports wire-speed forwarding of all ports to ensure smooth transmission of large files and video streaming. It features a compact metal body, and supports desktop, wall and rack mounting. As a flexible and simple-to-use device, it can be connected to such network devices as computers and network cameras. It is your ideal choice for video surveillance and wired networking in such scenarios as SMBs, communities, factories, and schools. Highlights: Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x 24 10/100/1000 Base-T Ethernet ports 8K MAC address and MAC address automatic learning IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control Plug and play 48 Gbps non-blocking wire-speed forwarding backplane bandwidth 4Mb large buffer design With 19-inch body design, and support desktop, wall and rack mounting

Read more less

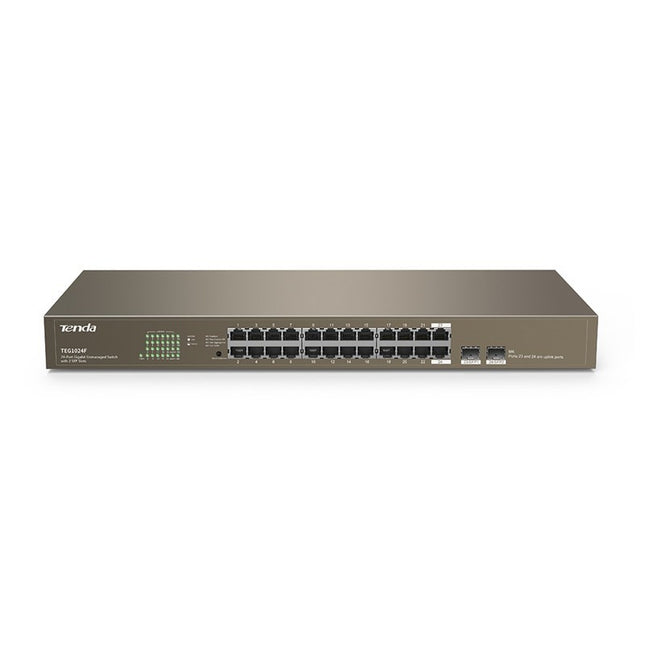

TEG1024F is a 24-port gigabit rackmount switch providing easy-to-use, cost-effective and fast network for IP surveillance projects, offices, workgroups and small and medium-sized enterprises. With 2 gigabit SFP combo ports used to connect to Tenda optical modules, it can be used for long-distance networking up to 20 km. TEG1024F also offers a data rate in full duplex of as high as 2000 Mbps, ensuring fast transmission of large files and smooth playback of videos. With professional lightning protection circuit, the switch provides 6 kV lightning protection for all the RJ45 ports and the power module, ensuring stability and reliability of the switch. TEG1024F allows users to change its work modes amongst standard (default mode), flow control off, link aggregation and port VLAN, fitting multiple network environments, making it the perfect choice for you to extend or upgrade your high-speed, stable gigabit wired network at long distance. Highlights: Stable connection for 7*24 4 modes for different networks Excellent lightning protection

Read more less

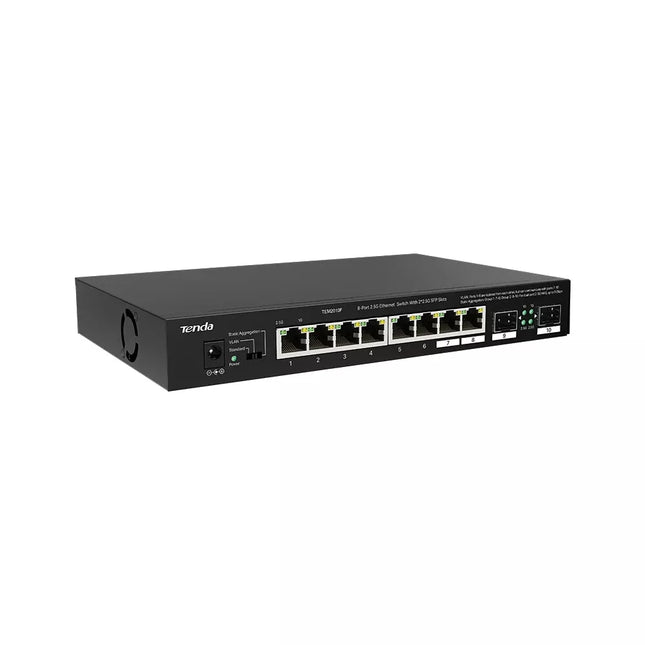

TEM2010F is an 8-port 2.5G Ethernet switch with 2 SFP ports independently designed by Tenda. The switch supports three-mode toggle and offers eight 2.5 Gbps RJ-45 ports and two 2.5 Gbps SFP ports, establishing high-speed network along with computers, NAS, TV set-up boxes, Wi-Fi6 APs and so on. TEM2010F is an ideal access device for high-speed network deployment in SMEs, SOHOs, villas or wireless networking scenarios. Highlights: Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz, IEEE 802.3cb. 8*100/1000/2500 Mbps Base-TX Ethernet ports, 2*100/1000/2500 Mbps Base-X SFP ports   16 K MAC address table and MAC address auto learning. IEEE 802.3x full duplex flow control and half duplex backpressure flow control    50Gbps switching fabric for non-blocking wire speed forwarding    6kV Lightning Protection      Three-mode toggle: Standard, VLAN, Static Aggregation Desktop mounting & Wall mounting Specifications: Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3bz，IEEE 802.3cb (MTBF)/MTBF: ≥100,000 hours LED Indicators: Two Link/Act LED indicators for each port One Power LED indicator for each device Ports: 8*100/1000/2500 Mbps Base-TX Ethernet ports 2*100/1000/2500 Mbps Base-X SFP ports Lightning Protection: ≥6 kV Forwarding Mode: Store and forward Switching Capacity: 50Gbps Forwarding Rate: 37.2Mpps MAC Address Table: 16K Input Voltage: AC: 100-240V 50Hz/60Hz Dimensions (L × W × H): 220mm*135.6mm*31.5mm（L*W*H） Three-mode Toggle: Three-mode toggle through one DIP switch: 1. Standard: In this mode, all ports can communicate with each other. 2. VLAN: Ports 1-6 are isolated from each other but can communicate with ports 7-10 3. Static Aggregation: Group 1: 7-8; Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps Environment: Operating temperature: 0°C - 45°C Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing

Read more less

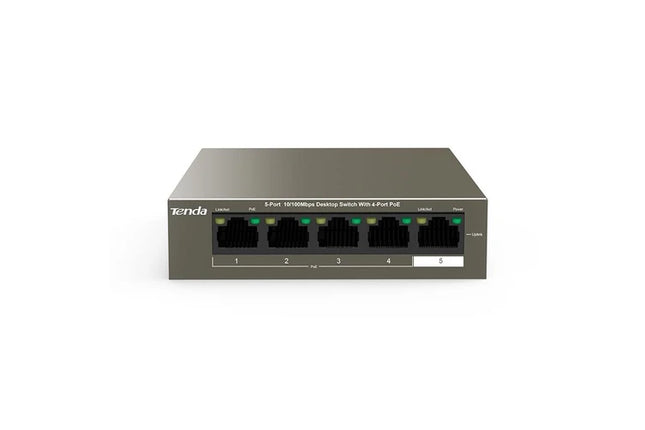

TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond a hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device. Highlights: 5*10/100 Mbps Base-TX RJ45 port; Ports 1-4: IEEE 802.3af/at PoE ports  Maximum power output of each PoE port: 30W; maximum power output of the switch: 58W Desktop size, metal case, Power Adapter Output 63W. Support extend mode, the transmission distance of both power and data will extend up to 250m Specifications: HARDWARE Network standards IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at       LED Indicator 5* Link/Ack LED indicators            1 * Power LED indicator Interfaces 4*10/100 Base-TX Ethernet Ports(Data/Power)   1*10/100 Base-TX Ethernet Port(Data) Transmission media Recommended: CAT5/5e UTP or better Dimension 100.0mmx100.0mmx26.0mm    Level of protection Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD:       Air discharge: ±10kV       Contact discharge: ±8kV Forwarding mode Store-and-forward           Switch capacity 1Gbps   Packet forwarding rate 0.74Mpps           Buffer 448K     MAC address table 1K           PoE budget Single port: AF: 15.4W, AT: 30W Whole device: 58W         Input voltage 100－240V AC 50/60Hz 51V /1.25A DC（Power Adapter ） Mounting Desktop mounting: support         Wall mounting: support Rack mounting:non-support       Environment Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing        Certification FCC、CE、RoHS               SOFTWARE Functions Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.   Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.

Read more less

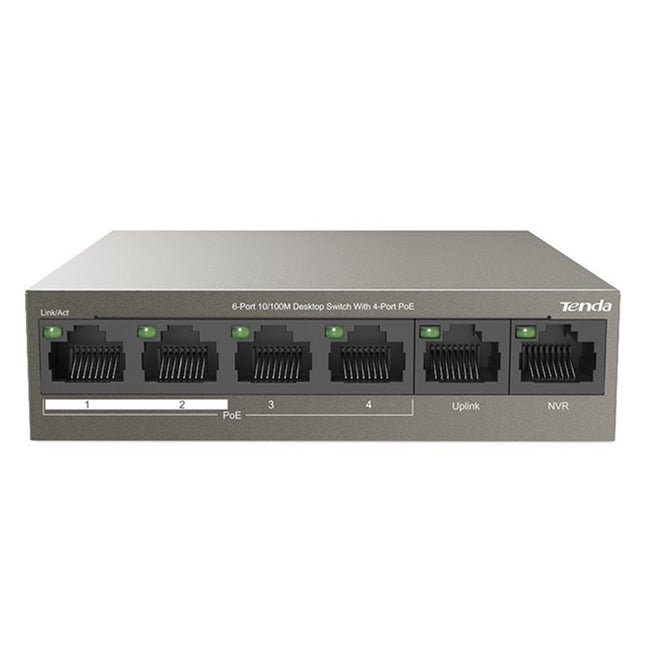

TEF1106P-4-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extended mode and QoS function, TEF1106P-4-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirements. Highlights: 6KV lightning protection 250m extend mode QoS Dual uplink ports 4-Port PoE

Read more less

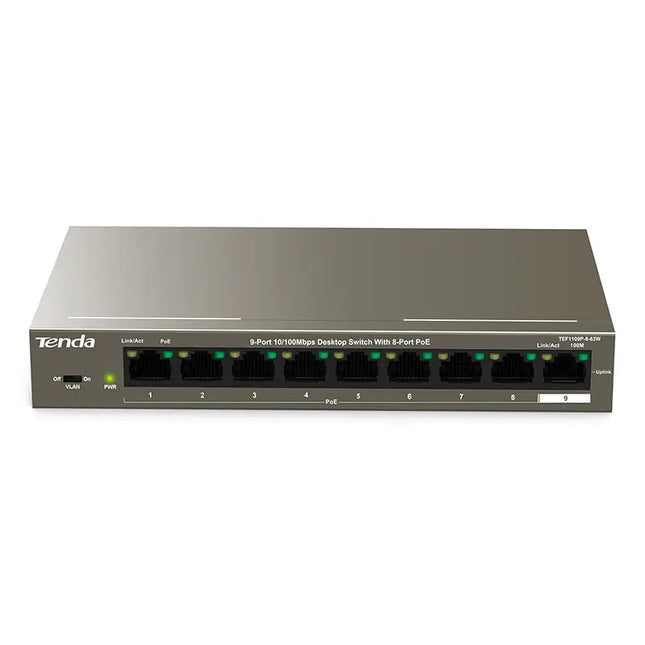

Tenda TEF1109P-8-63W, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting. Lead security transmission power supply to a higher level TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE 6KV Lightning Protection long distance transmission Maximum PoE Output Power 58W PoE power up to 30W for each PoE port. Highlights: Eight PoE ports for simplified connectivity and power efficiency Enhanced network security with advanced PoE management features Compact desktop design ideal for space-constrained environments Specifications: HARDWARE Network standards IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at       LED Indicator 9 * Link/Ack LED indicators           1 * Power LED indicator Interfaces 8*10/100 Base-TX Ethernet ports (Data/Power) 1*10/100 Base-TX Ethernet ports (Data) Transmission media Recommended: CAT5/5e UTP or better Dimension 177.5mmx104.0mmx26.0mm    Level of protection Lightning protection for ports: 6KV Lightning protection for power: 4KV ESD:       Air discharge: ±10kV       Contact discharge: ±8kV Forwarding mode Store-and-forward           Switch capacity 1.8 Gbit/s            Packet forwarding rate 1.34Mpps           Buffer 1.25Mb MAC address table 4K           PoE budget Single port: AF: 15.4W, AT: 30W Whole device: 58W         Input voltage 100－240V AC 50/60Hz 51V /1.25A DC（Power Adapter ） Mounting Desktop mounting: support         Wall mounting: support Rack mounting:non-support       Environment Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing        Certification FCC、CE、RoHS               SOFTWARE Functions Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.    VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.

Read more less

TEF1118P-16-150W is an unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum power output of 150 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, which is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements. Highlights: Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards. 16 * 10/100 Mbps Base-TX RJ45 ports for data transmission and power supply, 2 * 10/100/1000 Mbps Base-T RJ45 ports for data transmission, 1 * 10/100/1000 Mbps Base-X combo SFP slot. 4 K MAC address table and MAC address auto-learning. IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.  7.2 Gbps backplane bandwidth. Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 150W. 2.75 MB cache size for smooth video surveillance. 4 modes: standard, priority, extend and VLAN. Desktop and rack mounting. Specifications: Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at LEDs indicator: 16 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED Interfaces: 16 * 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 * 10/100/1000 Mbps Base-T RJ45 ports (Data) 1 * 10/100/1000 Mbps Base-X SFP port (Combo) Forwarding Rates: 5.36 Mpps Switching capacity: 7.2 Gbps MAC Address Table: 4K Lightning protection: ≥6KV Input voltage: AC: 100-240V~50/60Hz PoE supply: Ports 1-16 support standard IEEE802.3af/at 30W output per PoE port 130W output of the total PoE Power Power consumption: 150W output the whole device Dimensions: 294*178.8*44mm Four Modes: Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately. Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately. Extend: In this mode, data rate of ports 9 - 16 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN: In this mode, ports 1 - 16 of the switch can communicate with port G1, G2/SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. Environment: Operating Temperature: 0℃~45℃ (32℉~113℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Read more less

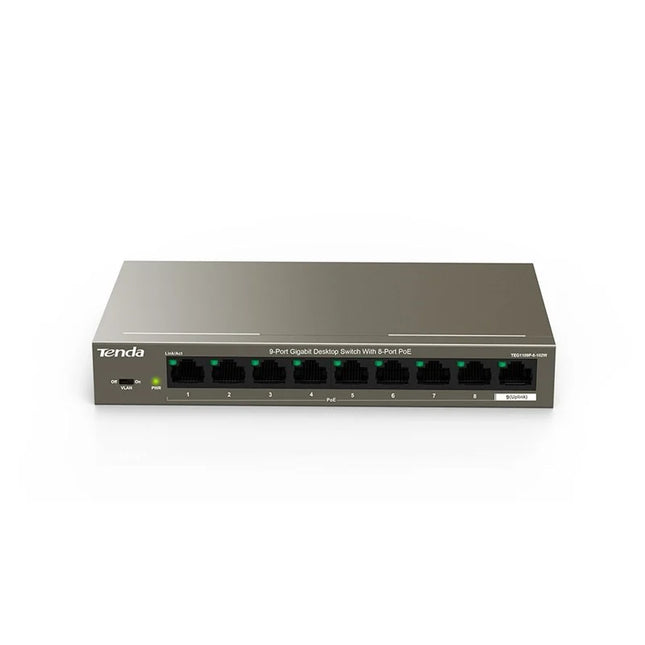

TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for the requirement of building Gigabit WLAN and HD camera monitor network. With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for uplink port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easier configure, flexible extend network without being limited by the power line layout, plug and play, helping SMB, hotel, shopping mall, school to build high-security and reliability network of wireless cover and HD monitor. Highlights: 6KV lightning protection One-key VLAN Intelligent 8-core power supply Smart power management Large buffer design

Read more less

TEG1116P-16-150W is a Tenda PoE switch that offers 16 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-16 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 135 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Isolation to help reduce cabling costs of IP terminals like APs and IP cameras. Highlights: 16*10/100/1000Mbps Base-TX RJ45 ports Ports 1-16: IEEE802.3af/at PoE ports Maximum power output of the switch: 135W 13-inch desktop size: 1U height, rack mountable Hardware DIP switch for selection among the standard, CCTV, VLAN, and Isolation modes. Hardware DIP switch to VLAN ports to prevent broadcast storm and defend against DHCP spoofing.

Read more less

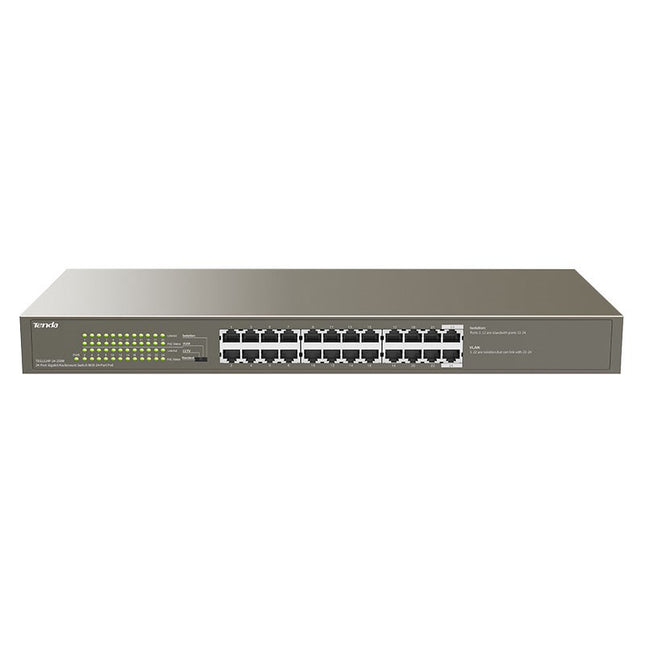

TEG1124P-24-250W is a Tenda PoE switch that offers 24 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-24 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4W) and 802.3at standard (maximum PoE power output: 30W). The switch provides a maximum PoE power output of 225W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Isolation to help reduce cabling costs of IP terminals like APs and IP cameras. Highlights: Offers 24 x 10/100/1000 BASE-T ports (Data/Power) Maximum PoE output power of up to 225W and up to 30W per PoE port Provides simple management modes such as CCTV, VLAN, and Isolation Ports 1-24 comply with the IEEE802.3af and IEEE802.3at power supply standards 6KV lightning protection for ports

Read more less

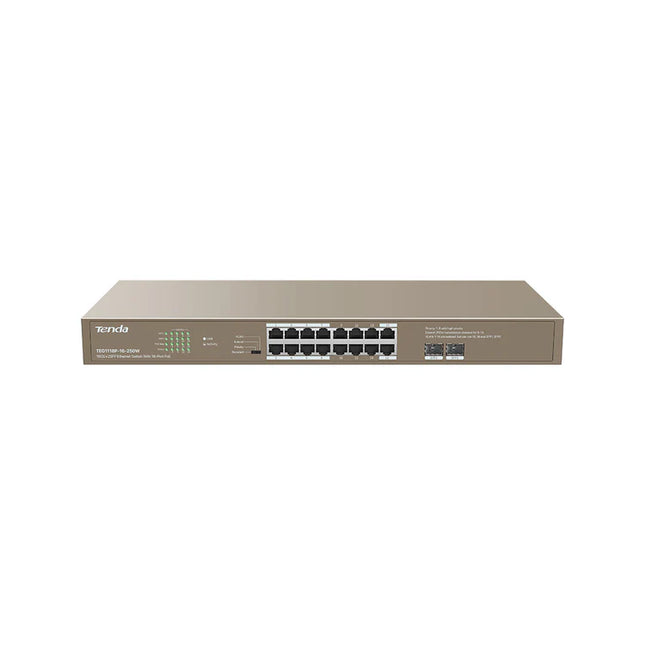

TEG1118P-16-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230W, and 30W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements. Highlights: Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards. 16 * 100/1000 Mbps Base-T RJ45 ports for data transmission and power supply, 2* 1000 Mbps Base-X SFP slot. 8K MAC address table and MAC address auto-learning. IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control. 36Gbps backplane bandwidth.   Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 250W. 4 modes: standard, priority, extend and VLAN. Specifications: Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at LEDs indicator: 16 * Link/Act LEDs 2 * SFP LED 1 * PoE-MAX LED 1 * Power LED Interfaces: 16 * 100/1000 Mbps Base-T RJ45 ports (Data/Power) 2* 1000 Mbps Base-X SFP port Forwarding Rates: 26.8Mpps Switching capacity: 36Gbps MAC Address Table: 8K Lightning protection: ≥6KV Input voltage: AC: 100-240V~50/60Hz PoE supply: Ports 1-16 support standard IEEE802.3af/at 30W output per PoE port 230W output of the total PoE Power Power consumption: 250W output the whole device Dimensions: 440*178.8*44mm Four Modes: Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately. Priority: In this mode, port15,16, SFP1, SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately. Extend: In this mode, data rate of ports 9 - 14 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN: In this mode, ports 1 - 14 of the switch can communicate with port 14,15, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. Environment: Operating Temperature: 0℃~45℃ (32℉~113℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Read more less

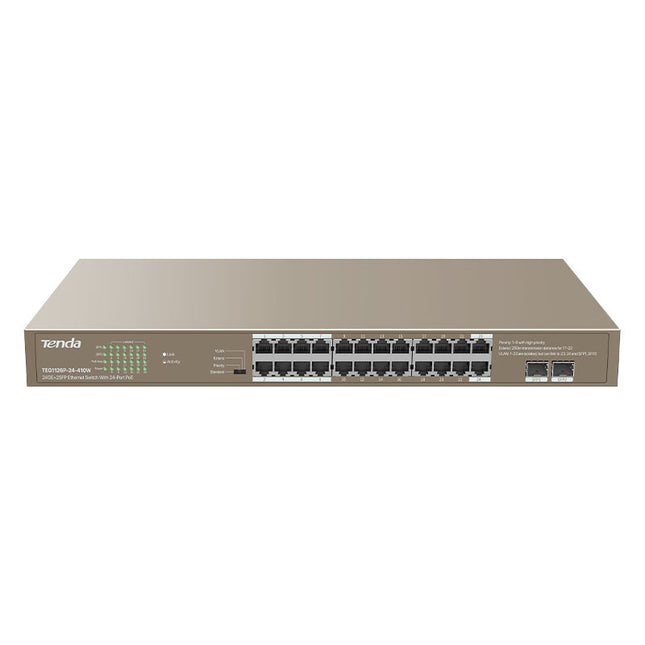

TEG1126P-24-410W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 370 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, which is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements. Highlights: Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards. 24 * 100/100 0Mbps Base-T RJ45 ports for data transmission and power supply, 2 * 1000 Mbps Base-X  SFP slots（Combo）. 8K MAC address table and MAC address auto-learning. IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.  48Gbps backplane bandwidth.  Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 410W. 4 modes: standard, priority, extend and VLAN.
